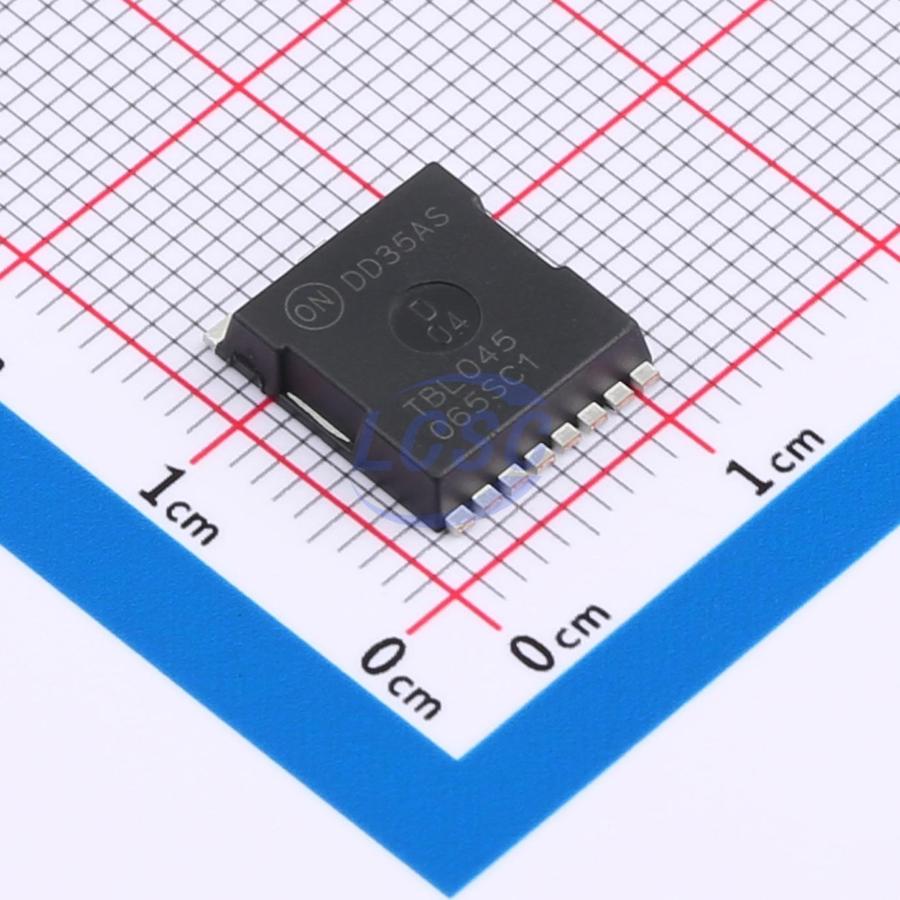

NTBL045N065SC1 The On Semiconductor NTBL045N065SC1 is an N-Channel Silicon Carbide MOSFET designed for high-performance applications. It offers a 650V drain-to-source voltage and a maximum continuous drain current of 73A.
Mfr Part #:

NTBL045N065SC1

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NTBL045N065SC1 is an N-Channel Silicon Carbide MOSFET designed for high-performance applications. It offers a 650V drain-to-source voltage and a maximum continuous drain current of 73A.
✓ Total Stock: 2,070 pcs
$ Price Range: $7.64

NTBL045N065SC1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,070 pcs
On Request
1070 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NTBL045N065SC1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

NTBL045N065SC1 Description

Short technical summary and product information.

The On Semiconductor NTBL045N065SC1 is an N-Channel Silicon Carbide (SiC) MOSFET. It features a drain-to-source voltage (Vdss) of 650V and a maximum continuous drain current of 73A at 25°C case temperature.



This MOSFET exhibits a typical on-resistance (RDS(on)) of 33 mOhm at 18V gate-to-source voltage and 25A drain current. It also offers a low gate charge (Qg) of 105 nC and a low effective output capacitance (Coss) of 162 pF. The device operates over a wide temperature range from -55°C to 175°C.



Packaged in an 8-PowerSFN (8-HPSOF) surface mount package, the NTBL045N065SC1 is suitable for applications such as switching mode power supplies, solar inverters, uninterruptible power supplies, and energy storage systems.



Key electrical characteristics include a gate-to-source voltage range of -8V to +22.6V, with recommended operation values between -5V and +18V. The device is 100% avalanche tested and RoHS compliant.

NTBL045N065SC1 Quick Information

Product Type: MOSFET
Canonical Name: NTBL045N065SC1 N-Channel Silicon Carbide MOSFET
Subcategory: N-Channel

NTBL045N065SC1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NTBL045N065SC1 Estimated Pricing

Qty Low High
1+ $7.64 $7.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

NTBL045N065SC1 Features

  • 650V drain-to-source voltage rating.
  • 73A maximum continuous drain current.
  • 33 mOhm typical on-resistance at 18V.
  • Low gate charge and output capacitance.
  • Wide operating temperature range.

NTBL045N065SC1 Applications

  • Suitable for switching power supplies.
  • Ideal for solar inverter designs.
  • Used in uninterruptible power supplies.
  • Applicable for energy storage systems.

NTBL045N065SC1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage of the NTBL045N065SC1?

The drain-to-source voltage (Vdss) is 650V.

What is the typical on-resistance for the NTBL045N065SC1?

The typical on-resistance is 33 mOhm at a gate-to-source voltage of 18V.

What is the maximum continuous drain current?

The maximum continuous drain current is 73A at a case temperature of 25°C.

What is the operating temperature range for this MOSFET?

The operating junction and storage temperature range is -55°C to 175°C.

What package type is the NTBL045N065SC1 supplied in?

It is supplied in an 8-PowerSFN package.
