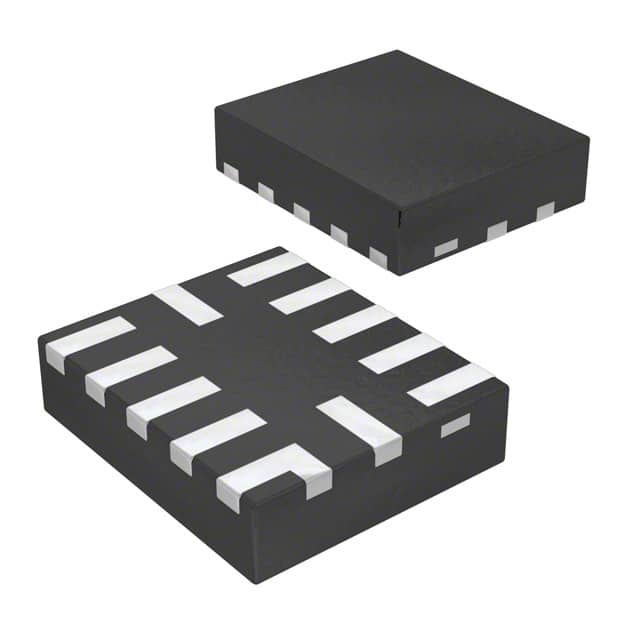

The NTB0104GU12,115 from NXP Semiconductors is a robust 4-channel bidirectional voltage level translator designed for applications requiring voltage level shifting. It operates with a VCC(A) supply voltage range of 1.2 V to 3.6 V and a VCC(B) supply voltage range of 1.65 V to 5.5 V, accepting inputs up to 5.5 V.
This device offers a high data rate of 100 Mbps and includes auto-direction sensing, simplifying design in complex systems. It provides strong ESD protection, exceeding 2500 V HBM for the A port and 15000 V HBM for the B port, along with over 200 V MM and 1500 V CDM protection. The latch-up performance exceeds 100 mA per JESD 78B Class II.
Designed for reliable operation across a wide range of environments, the NTB0104GU12,115 functions within an ambient operating temperature range of -40 °C to +125 °C. Its tri-state, non-inverted output type ensures flexible integration into various digital circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for VCC(A) is from 1.2 V to 3.6 V.
The operating voltage range for VCC(B) is from 1.65 V to 5.5 V.
This device can accept input voltages up to 5.5 V.
The ESD protection for the A port (HBM JESD22-A114E Class 2) exceeds 2500 V.
The ESD protection for the B port (HBM JESD22-A114E Class 3B) exceeds 15000 V.
This translator supports a maximum data rate of 100 Mbps.
The operating temperature range is from -40 °C to +125 °C.
