| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
254,550 pcs
|
254550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9,020 pcs
|
9020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q101 | |
| Automotive Grade | |
| Capacitance @ Vr, F | |
| Current | |
| Diode Type | |
| Forward Voltage (Typical @ 1 mA) | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| PPAP | |
| Resistance @ If, F | |
| SVHC Present | |
| Standard Package Quantity | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

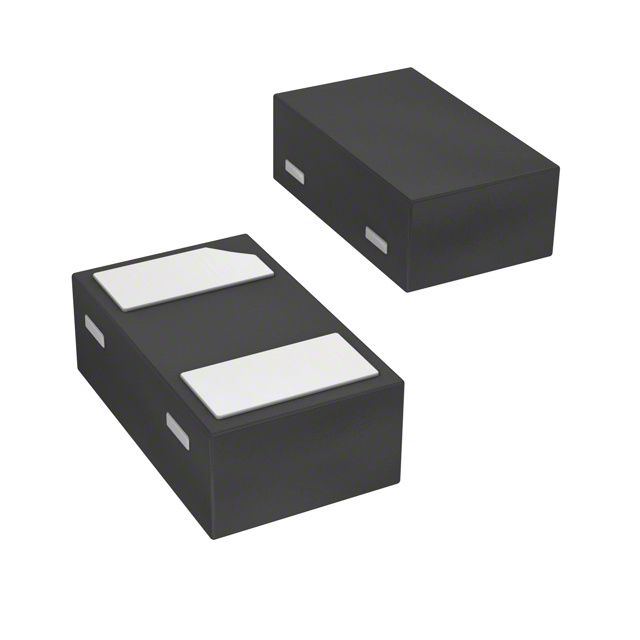

The NSVR201MXT5G is a Schottky barrier diode from ON Semiconductor, specifically designed for mixer and detector applications in microwave and submilliwave circuits. It features a low forward voltage of 320 mV typical at 1 mA, and a small interterminal capacitance of 0.15 pF typical, making it suitable for high-frequency operation. The diode is AEC-Q101 qualified and PPAP capable, ensuring reliability for automotive use. It comes in a compact 2-X2DFN (1.0x0.6) surface mount package, with a tape and reel packaging of 8000 pieces. The device is Pb-free, halogen free, and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.34 | $0.34 |
| 100+ | $0.28 | $0.28 |
| 500+ | $0.27 | $0.27 |
| 8,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2V.
50mA.
320 mV.
2-XDFN (2-X2DFN 1.0x0.6).
0.15 pF at 0V, 1 MHz.
14 Ω at 10 mA, 1 MHz.
Yes, it is AEC-Q101 qualified and PPAP capable.
