NSVJ5908DSG5T1G The ON Semiconductor NSVJ5908DSG5T1G is an N-Channel Dual JFET designed for compact and efficient applications. It offers a drain-source voltage of 15V and a drain current of 50mA.
Mfr Part #:

NSVJ5908DSG5T1G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NSVJ5908DSG5T1G is an N-Channel Dual JFET designed for compact and efficient applications. It offers a drain-source voltage of 15V and a drain current of 50mA.
✓ Total Stock: 98,220 pcs
$ Price Range: $0.99

NSVJ5908DSG5T1G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
98,220 pcs
On Request
98220 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NSVJ5908DSG5T1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Drain (Id)
Drain to Source Voltage (Vdss)
FET Type
Halogen Free
Input Capacitance
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Noise Figure
Operating Temperature
Power
Power Dissipation
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

NSVJ5908DSG5T1G Description

Short technical summary and product information.

The NSVJ5908DSG5T1G from ON Semiconductor is a dual N-channel JFET designed for automotive and other applications requiring unique site and control change requirements. It is AEC-Q101 qualified and PPAP capable.



This JFET features a drain-to-source voltage of 15V and a continuous drain current of 50mA. Key electrical characteristics include a typical forward transfer admittance of 35mS and an input capacitance of 10.5pF. The device operates within a temperature range of -55°C to 150°C.

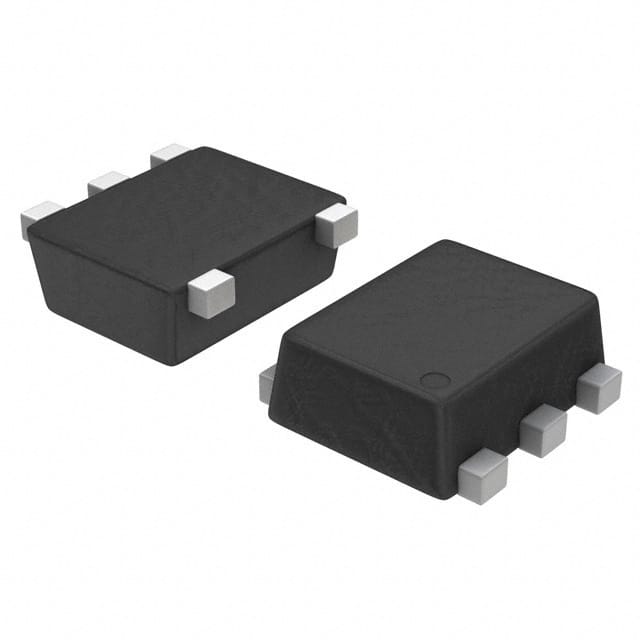

Packaged in an SC-88AFL/MCPH5 (5-SMD, Flat Leads) surface-mount package, this JFET is suitable for compact and thin designs. It is also Pb-free, Halogen Free/BFR Free, and RoHS compliant, making it a versatile component for various electronic designs.



Typical applications include AM tuner RF amplification and low noise amplifiers.

NSVJ5908DSG5T1G Quick Information

Product Type: JFET
Canonical Name: N-Channel JFET, Dual
Subcategory: Transistors - JFETs

NSVJ5908DSG5T1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NSVJ5908DSG5T1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NSVJ5908DSG5T1G Features

  • Dual N-Channel JFET configuration.
  • 15V drain-to-source breakdown voltage.
  • 50mA continuous drain current.
  • 300mW total power dissipation.
  • SC-88AFL/MCPH5 surface-mount package.

NSVJ5908DSG5T1G Applications

  • Used in low-power switching circuits
  • Suitable for signal amplification
  • Ideal for automated surface-mount assembly
  • Applicable in environmental-sensitive designs

NSVJ5908DSG5T1G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-to-source breakdown voltage?

The drain-to-source breakdown voltage is 15 V.

What is the typical gate-source cutoff voltage?

The typical gate-source cutoff voltage is -0.7 V.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C.

What type of package is this JFET in?

This JFET is in a 5-SMD, Flat Leads package, also known as SC-88AFL/MCPH5.

Is this component RoHS compliant?

Yes, this component is RoHS3 Compliant.
