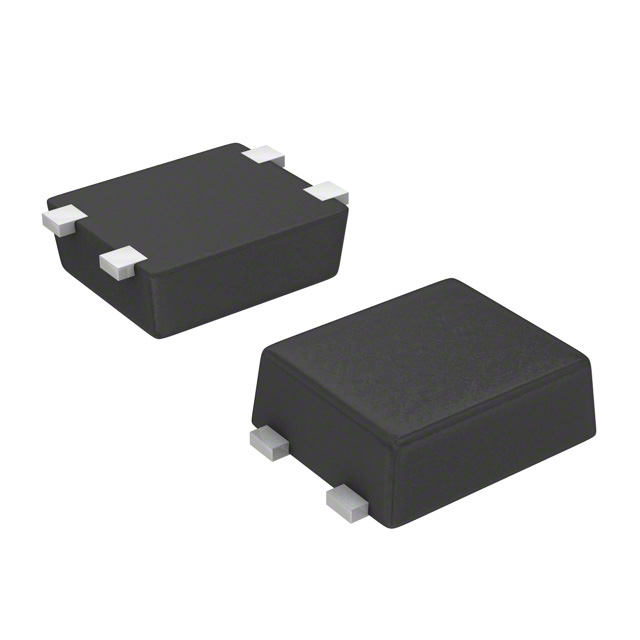

The On Semiconductor NSVF4015SG4T1G is an NPN RF transistor specifically designed for low noise amplifier applications. It features a low noise figure of 1.2 dB at 1 GHz and a high cut-off frequency of 10 GHz typ. (VCE = 5 V).
This transistor supports a collector-emitter voltage of 12V and a collector current of 100mA, with a power dissipation of 450mW. The forward transfer gain is 17 dB typ. at 1 GHz. It is housed in an SC-82FL/MCPH4 package, suitable for surface mounting.
The device is AEC-Q101 qualified and PPAP capable, making it suitable for automotive applications. It is also Pb-Free, Halogen Free, and RoHS compliant.
Typical applications include low noise amplifiers for digital radio, TV, and FM radio, as well as RF amplifiers for UHF applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical gain-bandwidth product (fT) for the NSVF4015SG4T1G is 10 GHz.
The typical noise figure (NF) for the NSVF4015SG4T1G at 1 GHz is 1.2 dB.
The maximum collector current (IC) for the NSVF4015SG4T1G is 100 mA.
The operating junction and storage temperature range for the NSVF4015SG4T1G is -55°C to +150°C.
The NSVF4015SG4T1G is supplied in the SC-82FL/MCPH4 package.
Yes, the NSVF4015SG4T1G is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the NSVF4015SG4T1G is 1.
