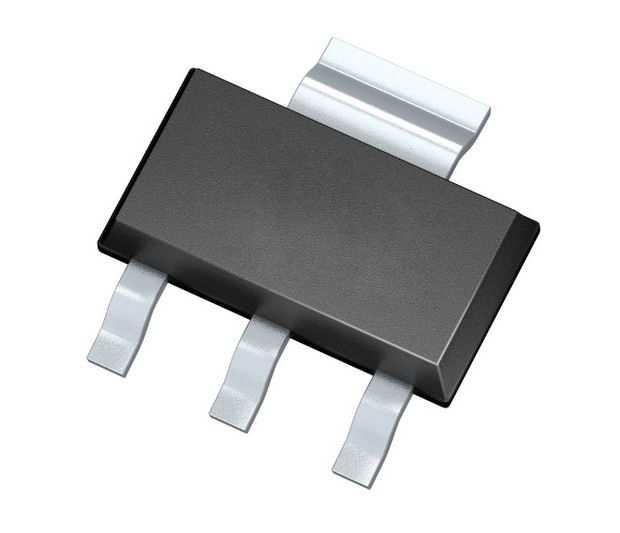

NSV60601MZ4T1G The ON Semiconductor NSV60601MZ4T1G is an NPN transistor designed for low voltage, high speed switching applications. It features a low VCE(sat) and high current gain capability.
Mfr Part #:

NSV60601MZ4T1G

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor NSV60601MZ4T1G is an NPN transistor designed for low voltage, high speed switching applications. It features a low VCE(sat) and high current gain capability.
✓ Total Stock: 13,809 pcs
$ Price Range: $0.99

NSV60601MZ4T1G Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
12,500 pcs
On Request
12500 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,259 pcs
On Request
1259 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NSV60601MZ4T1G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Halogen Free
Lead Style
Mounting Type
Operating Temperature
Tape & Reel
View Similar Products (0)

NSV60601MZ4T1G Description

Short technical summary and product information.

The ON Semiconductor NSV60601MZ4T1G is a 60V, 6.0A NPN transistor belonging to the e2PowerEdge family. It is designed for low voltage, high speed switching applications where efficient energy control is important.



Key electrical characteristics include a maximum collector-emitter voltage of 60Vdc and a continuous collector current of 6.0A. The device offers low saturation voltage (VCE(sat)) and high current gain capability, allowing it to be driven directly from PMU control outputs.



This transistor is housed in a SOT-223 surface mount package. It is Pb-Free, Halogen Free/BFR Free, and RoHS Compliant. Typical applications include DC-DC converters, power management in portable devices, and low voltage motor controls.



It is complementary to the NSS60600MZ4 and is suitable for automotive applications requiring AEC-Q101 qualification.

NSV60601MZ4T1G Quick Information

Product Type: NPN Transistor
Series: NSV60601
Canonical Name: NPN Low VCE(sat) Transistor
Subcategory: Bipolar (BJT) - Arrays

NSV60601MZ4T1G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NSV60601MZ4T1G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NSV60601MZ4T1G Features

  • 60V collector-emitter voltage rating.
  • 6A continuous collector current.
  • Low VCE(sat) for efficient switching.
  • High current gain capability.
  • Pb-Free and Halogen-Free construction.

NSV60601MZ4T1G Applications

  • Used in DC-DC converters.
  • Power management for portable devices.
  • Low voltage motor control.
  • Automotive air bag deployment.
  • Analog amplifier circuits.

NSV60601MZ4T1G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the NSV60601MZ4T1G?

The maximum collector-emitter voltage is 60 Vdc.

What is the continuous collector current rating?

The continuous collector current rating is 6 A.

What type of package is the NSV60601MZ4T1G in?

The NSV60601MZ4T1G is available in a SOT-223 package.

What is the operating temperature range?

The operating temperature range is -55 °C to +150 °C.

Is the NSV60601MZ4T1G RoHS compliant?

The NSV60601MZ4T1G is RoHS3 Compliant.
