The ON Semiconductor NSS12100UW3TCG is a PNP bipolar transistor from the e2PowerEdge family, designed for efficient energy control in low voltage, high speed switching applications. It features ultra-low saturation voltage (VCE(sat)) and high current gain capability.
Key electrical specifications include a collector-emitter voltage (VCEO) of -12V, a continuous collector current (IC) of -1A, and a peak collector current (ICM) of -2A. The device boasts a typical DC current gain (hFE) of 100 at 500mA and 2V, with a maximum Vce saturation of 440mV at 100mA and 1A. Its frequency response is up to 200MHz.
This transistor is housed in a compact 3-WDFN (2x2) exposed pad package, suitable for surface mounting. It operates within a temperature range of -55°C to 150°C (TJ) and has a power dissipation of 740 mW. The device is Pb-free, Halogen-free/BFR-free, and RoHS compliant, with an MSL rating of 1.
Typical applications include DC-DC converters, power management in portable and battery-powered devices, and low voltage motor controls. Its high current gain allows direct drive from PMU control outputs, and its linear gain makes it suitable for analog amplifiers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage (VCEO) for the NSS12100UW3TCG is 12V.
The continuous collector current (IC) for the NSS12100UW3TCG is 1A.
The operating temperature range for the NSS12100UW3TCG is -55°C to 150°C.

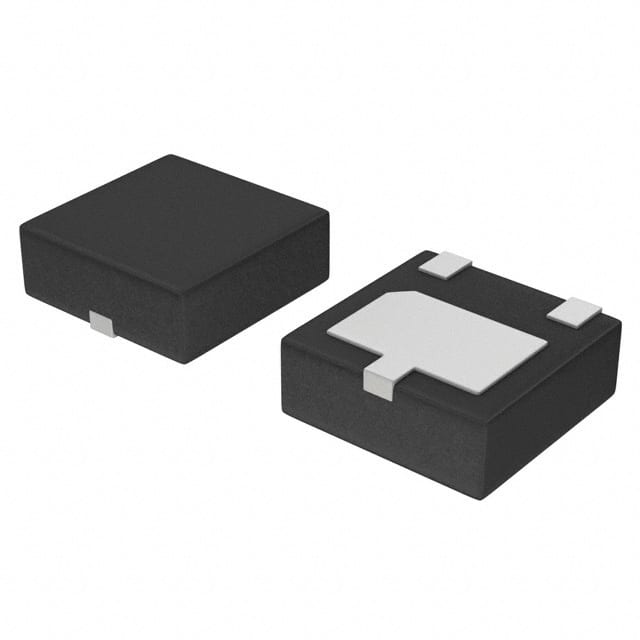

The NSS12100UW3TCG is supplied in a 3-WDFN Exposed Pad package.
Yes, the NSS12100UW3TCG is RoHS3 Compliant.
