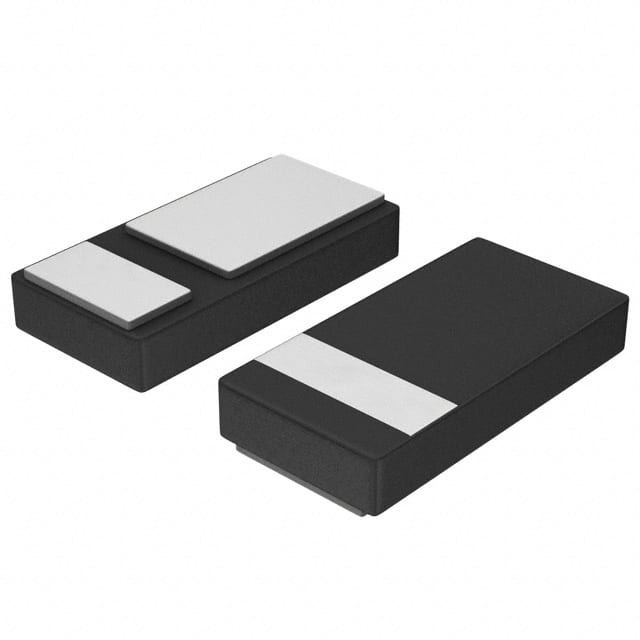

NSR05F30NXT5G NSR05F30NXT5G is a 30V, 500mA Schottky barrier diode in a surface mount 0402 (2-DSN) package. It features low forward voltage drop of 0.320V at 100mA and high ESD rating of >8kV HBM.
Mfr Part #:

NSR05F30NXT5G

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
NSR05F30NXT5G is a 30V, 500mA Schottky barrier diode in a surface mount 0402 (2-DSN) package. It features low forward voltage drop of 0.320V at 100mA and high ESD rating of >8kV HBM.
✓ Total Stock: 977,595 pcs
$ Price Range: $0.13 - $0.54

NSR05F30NXT5G Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
960,000 pcs
On Request
960000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
9,200 pcs
On Request
9200 pcs On Request 1 On Request On Request 14+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,020 pcs
On Request
6020 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2,375 pcs
On Request
2375 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NSR05F30NXT5G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Halogen Free
Junction Temperature
Lead Style
Medical Grade
Mounting Type
Operating Temperature
Reverse Voltage
SVHC Present
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

NSR05F30NXT5G Description

Short technical summary and product information.

The NSR05F30NXT5G is a Schottky barrier diode from onsemi, designed for low forward voltage drop and low leakage current in a compact Chip Scale Package (CSP).



This diode offers a maximum reverse voltage of 30V and a continuous forward current of 500mA. The forward voltage is typically 0.320V at 100mA and 0.400V at 500mA, enabling efficient rectification in low-voltage applications. Reverse leakage current is 15µA maximum at 10V and 75µA at 30V.



The device is rated for ESD protection with Human Body Model >8kV (Class 3B) and Machine Model >400V (Class C). It is housed in a 2-DSN (0402) surface mount package, suitable for space-constrained designs. The operating junction temperature range is up to 150°C.



Typical applications include LCD and keypad backlighting, camera photo flash, buck and boost DC-DC converters, reverse voltage and current protection, and clamping circuits. The part is Pb-Free, Halogen Free/BFR Free, and RoHS compliant.

NSR05F30NXT5G Quick Information

Product Type: Schottky Barrier Diode
Canonical Name: NSR05F30NXT5G Schottky Barrier Diode
Subcategory: Rectifier Diode

NSR05F30NXT5G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

NSR05F30NXT5G Estimated Pricing

Qty Low High
1+ $0.54 $0.54
10+ $0.33 $0.33
100+ $0.21 $0.21
500+ $0.16 $0.16
1,000+ $0.13 $0.13
5,000+ $0.13 $0.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

NSR05F30NXT5G Features

  • 30V maximum reverse voltage rating.
  • 500mA continuous forward current capability.
  • Low forward voltage drop of 0.320V typical.
  • ESD rating over 8kV Human Body Model.
  • Surface mount 0402 (2-DSN) package.

NSR05F30NXT5G Applications

  • Used in LCD and keypad backlighting.
  • Ideal for camera photo flash circuits.
  • Suitable for buck and boost converters.
  • Provides reverse voltage and current protection.
  • Used in clamping and protection circuits.

NSR05F30NXT5G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage of the NSR05F30NXT5G?

The maximum reverse voltage is 30V.

What is the forward current rating of this diode?

The maximum continuous forward current is 500mA.

What is the forward voltage drop at 100mA?

The typical forward voltage is 0.320V at 100mA, with a maximum of 0.360V.

What package is the NSR05F30NXT5G available in?

It is available in a 2-DSN (0402) surface mount package.

What is the ESD rating of this Schottky diode?

The ESD rating is >8kV for Human Body Model (Class 3B) and >400V for Machine Model (Class C).
