| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37,702 pcs
|
37702 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Breakdown Voltage (VBR @ 1 mA) | |
| Capacitance @ Frequency | |
| Clamping Voltage (Vc) @ Ipp | |
| Current | |
| ESD Protection Level (IEC 61000-4-2) | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Reverse Leakage Current (IR) @ VRWM | |
| SVHC Present | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Working Peak Reverse Voltage (Vrwm) |

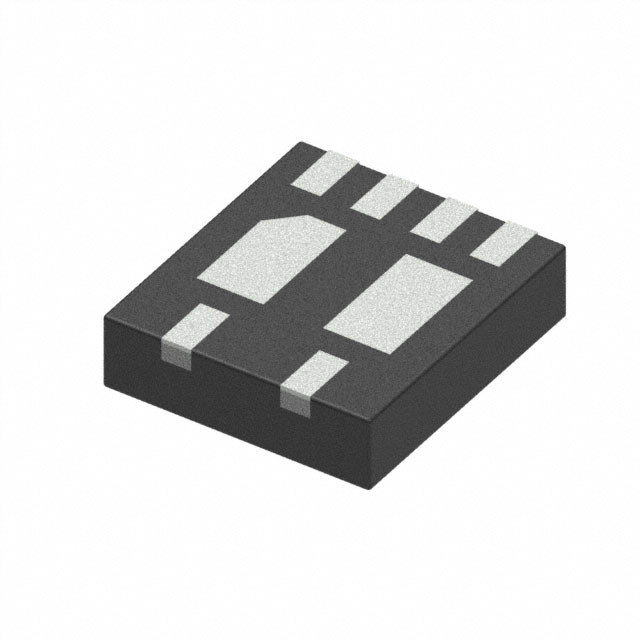

The NSPU5132MUTBG is a unidirectional TVS diode designed for ESD and surge protection. It features a working peak reverse voltage of 13.5V and a breakdown voltage range of 13.6V to 17.5V at 1mA. The device clamps at 24V when subjected to a peak pulse current of 200A (8/20µs waveform), with a peak pulse power rating of 4800W.
This component meets IEC 61000-4-2 Level 4 ESD protection, withstanding ±30kV contact discharge. It is suitable for general-purpose applications requiring robust transient voltage suppression.
The NSPU5132MUTBG is housed in a 6-UFDFN exposed pad package (6-UDFN 1.8x2) and is surface mountable. It is supplied in tape and reel packaging with a standard quantity of 3000 units. The device is Pb-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.54 | $0.54 |
| 100+ | $0.32 | $0.32 |
| 500+ | $0.26 | $0.26 |
| 1,000+ | $0.24 | $0.24 |
| 3,000+ | $0.22 | $0.22 |
| 6,000+ | $0.20 | $0.20 |
| 24,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13.5V maximum.
13.6V minimum, 15.5V nominal, 17.5V maximum at 1mA test current.
24V maximum at 200A peak pulse current (8/20µs).
200A maximum (8/20µs waveform).
6-UFDFN exposed pad (6-UDFN 1.8x2).
±30kV contact discharge per IEC 61000-4-2 Level 4.
-55°C to 125°C.
