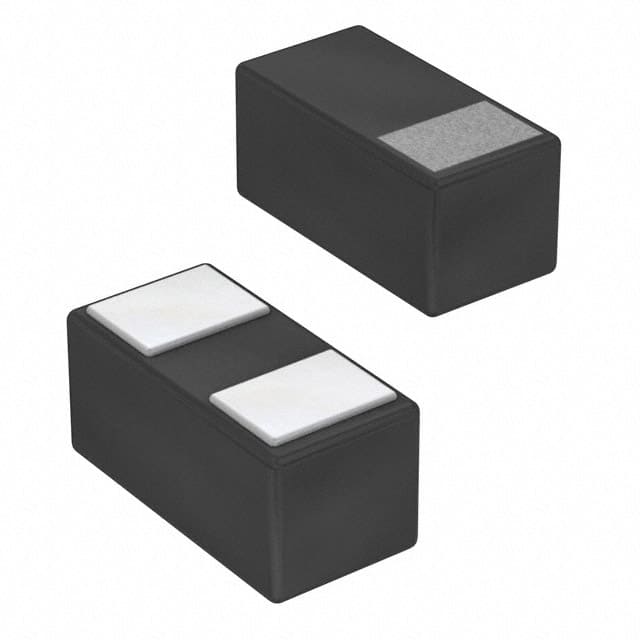

The NSPM0051MUT5G is a unidirectional ESD protection diode from On Semiconductor, designed to protect sensitive electronics from electrostatic discharge and other transient voltage events. It is housed in a compact 2-UDFN surface mount package.
Key electrical specifications include a reverse working voltage of 5.0V, a breakdown voltage range of 6.0V to 9.0V (typical 7.0V at 1mA), and a low reverse leakage current of 0.1µA at 5V. The device can handle peak pulse currents up to 70A (8/20µs waveform) with a maximum clamping voltage of 11.5V at that current. It also provides ESD protection up to ±30kV contact and air discharge per IEC 61000-4-2.
The diode features a typical junction capacitance of 16pF at 1MHz and a dynamic resistance of 0.04Ω. It is rated for operation over a junction temperature range of -65°C to 150°C. The part is Pb-Free, Halogen Free/BFR Free, and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 8,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse working voltage is 5.0V.
The maximum peak pulse current is 70A for an 8/20µs waveform at 25°C.
The maximum clamping voltage is 11.5V at a peak pulse current of 70A (8/20µs).
It provides ±30kV contact and ±30kV air discharge protection per IEC 61000-4-2.
It is available in a 2-UDFN surface mount package (UDFN2).
The operating junction and storage temperature range is -65°C to 150°C.
Yes, the device is Pb-Free, Halogen Free/BFR Free, and RoHS compliant.
