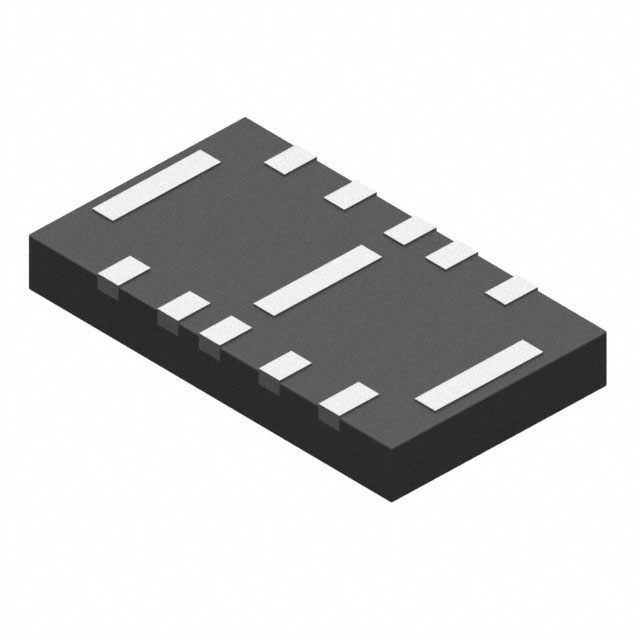

The NSP8818MUTAG is a steering (rail-to-rail) TVS diode from On Semiconductor designed to protect high-speed data lines from ESD and surge events. It features a reverse standoff voltage of 3V and a clamping voltage of 15V at a peak pulse current of 35A (8/20µs). The device offers 8 unidirectional channels with ultra-low capacitance of 2pF max (I/O to I/O) and 5pF max (I/O to GND) at 1MHz, making it suitable for high-speed signal integrity.
This component is specifically intended for Ethernet applications including 10/100 and GbE interfaces. It provides IEC 61000-4-2 ESD protection of ±30kV contact and ±30kV air, and IEC 61000-4-5 lightning surge protection up to 35A. The device is housed in a surface-mount 10-UDFN exposed pad package (3.5x2mm) and supports an operating temperature range of -55°C to 125°C.
The NSP8818MUTAG is Pb-free, halogen free/BFR free, and RoHS compliant. It has a UL flammability rating of 94 V-0 and is supplied in tape and reel packaging with a standard quantity of 3000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.11 | $1.11 |
| 100+ | $0.86 | $0.86 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.61 | $0.61 |
| 3,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage (VRWM) is 3V.
The clamping voltage (VC) is 15V.
The peak pulse current (IPP) is 35A under an 8/20µs waveform.
It has 8 unidirectional channels.
Capacitance is 5pF max (I/O to GND) and 2pF max (I/O to I/O) at 1MHz.
It is available in a 10-UDFN Exposed Pad package (3.5x2mm).
The operating junction temperature range is -55°C to 125°C.
