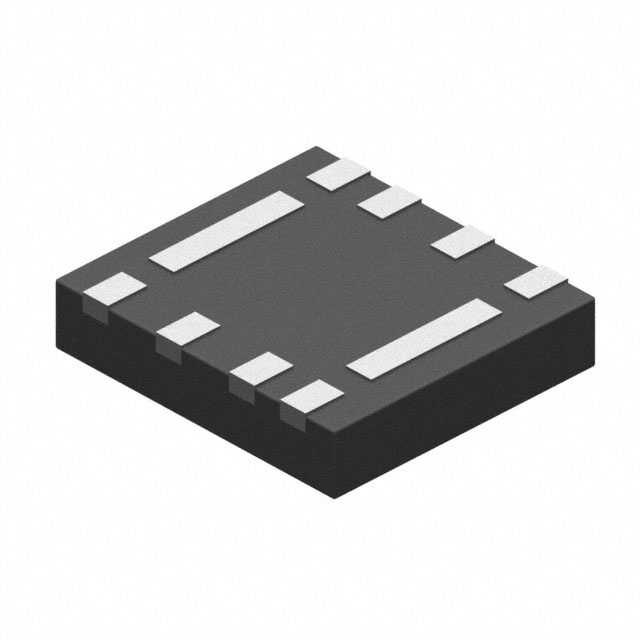

The NSP8814MUTAG from On Semiconductor is a steering (rail to rail) TVS diode designed to protect high-speed data lines, particularly 10/100 and GbE Ethernet, from surge and ESD events. It features a low clamping voltage of 15V under high surge conditions, with a peak pulse current rating of 35A (8/20µs). The device provides ESD protection up to ±30kV contact and ±30kV air per IEC 61000-4-2. Its low capacitance, maximum 2pF (I/O to I/O), ensures minimal signal distortion for high-speed differential pairs. The flow-through routing scheme simplifies PCB layout and maintains consistent impedance. The NSP8814MUTAG is housed in a compact 8-UDFN exposed pad package (2.2x2mm) and is surface mountable. It is RoHS3 compliant, Pb-Free, and Halogen Free/BFR Free, with a UL flammability rating of 94 V-0. Operating temperature range is -55°C to 125°C junction temperature. This device is ideal for Ethernet interfaces, MagJacks, notebooks, desktops, and servers requiring robust surge protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $0.91 | $0.91 |
| 100+ | $0.60 | $0.60 |
| 500+ | $0.47 | $0.47 |
| 1,000+ | $0.43 | $0.43 |
| 3,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clamping voltage is 15V.
The peak pulse current is 35A (8/20µs).
The package is 8-UDFN Exposed Pad (2.2x2mm).
It provides ±30kV contact and ±30kV air discharge protection per IEC 61000-4-2.
Maximum capacitance is 2pF (I/O to I/O).
The operating junction temperature range is -55°C to 125°C.
