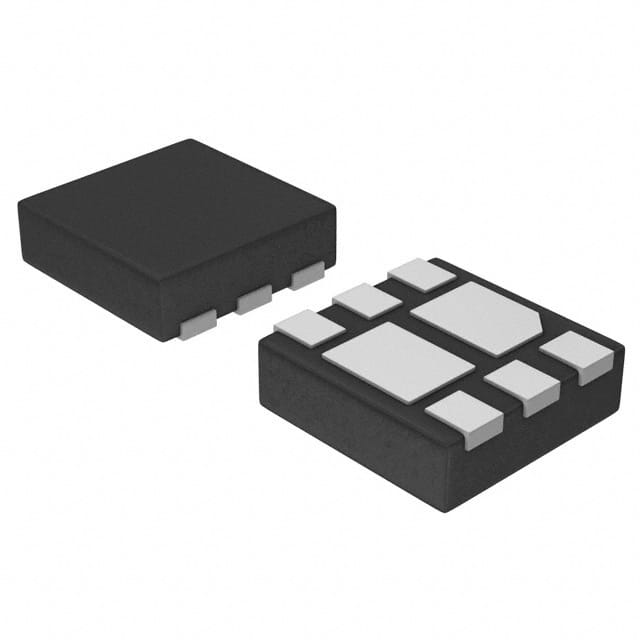

The On Semiconductor NSM3005NZTAG is a versatile transistor combining a PNP BJT and an N-Channel MOSFET. It is rated for 30V collector-emitter voltage and 500mA collector current for the PNP BJT, and 20V drain-source voltage and 224mA continuous drain current for the N-Channel MOSFET.
This device is supplied in a 6-UDFN (1.6x1.6) surface mount package, making it suitable for space-constrained designs. It features Pb-Free, Halogen Free/BFR Free, and RoHS compliance.
Key electrical characteristics include a maximum collector-emitter saturation voltage of 0.4V for the PNP BJT and a thermal resistance of 245°C/W junction-to-ambient. The operating junction and storage temperature range is -55°C to 150°C.
This transistor is ideal for general purpose applications where a combination of PNP and N-Channel MOSFET functionality is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter voltage rating for the PNP BJT is 30 V.
The drain-to-source voltage rating for the N-Channel MOSFET is 20 V.
The maximum continuous drain current at TA = 25°C is 224 mA.
The package type is 6-UDFN (1.6x1.6).
This component is ROHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
