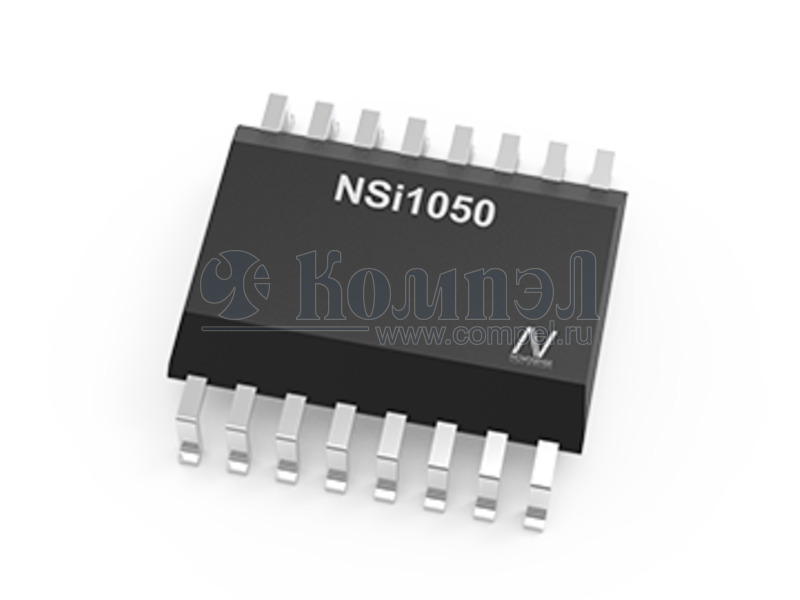

NSI1050-DDBR The Novosense NSi1050-DDBR is an isolated CAN transceiver fully compatible with the ISO11898-2 standard. It offers high insulation voltage and a data rate up to 1Mbps.
Mfr Part #:

NSI1050-DDBR

Available from 1 distributors
Mfr Name: Novosense
Novosense
The Novosense NSi1050-DDBR is an isolated CAN transceiver fully compatible with the ISO11898-2 standard. It offers high insulation voltage and a data rate up to 1Mbps.
✓ Total Stock: 2,250 pcs

NSI1050-DDBR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,250 pcs
On Request
2250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NSI1050-DDBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Operating Temperature
Tape & Reel
View Similar Products (0)

NSI1050-DDBR Description

Short technical summary and product information.

The NSi1050-DDBR from Novosense is a highly integrated isolated CAN transceiver designed for reliability and performance. It fully complies with the ISO11898-2 standard and incorporates two-channel digital isolators based on silicon oxide capacity isolation technology. This device provides up to 5000Vrms insulation withstand voltage, ensuring robust operation in demanding environments.



Key electrical specifications include a data rate of up to 1Mbps, a supply voltage range of 2.5V to 5.5V for VDD1 and 4.5V to 5.5V for VDD2, and bus fault protection from -40V to +40V. It also features a transmit data dominant time out function, over-current, and over-temperature protection. The operating temperature range is -40°C to 125°C.



This isolated CAN transceiver is suitable for applications such as industrial automation systems and isolated CAN bus implementations. It is available in a DUB8 package and is RoHS-compliant.

NSI1050-DDBR Quick Information

Product Type: Digital Isolator
Series: NSi1050
Canonical Name: NSi1050 Isolated CAN Transceiver
Subcategory: Digital Isolator

NSI1050-DDBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NSI1050-DDBR Features

  • Fully compatible with ISO11898-2 standard.
  • Up to 5000Vrms insulation voltage.
  • Data rate up to 1Mbps.
  • Wide operating temperature range.
  • Integrated digital isolators and CAN transceiver.

NSI1050-DDBR Applications

  • Industrial CAN bus isolation applications.
  • Automotive in-vehicle network communication.
  • Systems requiring high noise immunity.
  • Isolated data acquisition and control.

NSI1050-DDBR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the insulation voltage of the NSI1050-DDBR?

5000 Vrms.

What is the operating temperature range?

-40°C to 125°C.

What package is the NSI1050-DDBR available in?

DUB8.

What is the maximum data rate?

1 Mbps.

What is the maximum signal delay?

Less than 200 ns.

What is the bus fault protection range?

-40 V to +40 V.

What is the common-mode transient immunity?

100 kV/µs.
