| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Applications | |
| Failure Rate | |
| Lead Style | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Operating Voltage | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Supplier Device Package | |
| Supplier Package | |
| Termination Style | |
| Voltage |

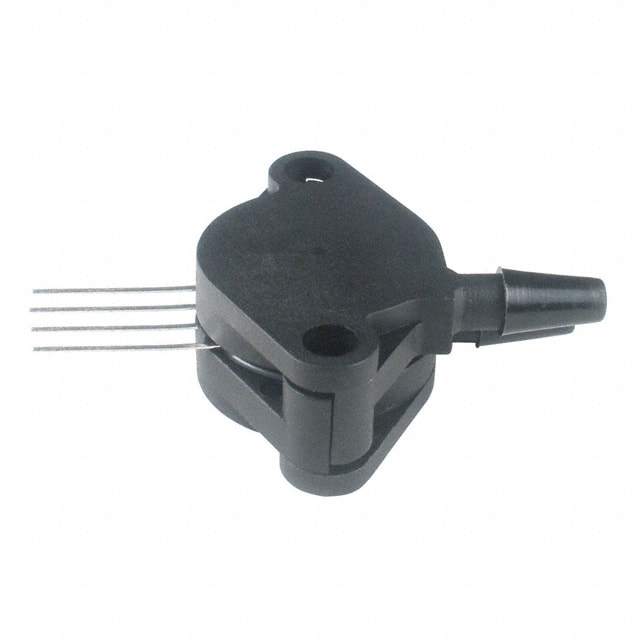

The Honeywell NSCSHHN015PDUNV is a piezoresistive silicon pressure sensor from the TruStability® NSC Series. It provides a ratiometric analog output for reading pressure over its specified span and temperature range.
This sensor features a differential pressure type with an operating pressure range of ±15 PSI (±103.42 kPa) and a maximum pressure rating of ±30 PSI (±206.84 kPa). The output is provided via a Wheatstone Bridge, delivering a voltage range of 0 mV to 155 mV with a supply voltage of 1.5V to 12V. The accuracy is rated at ±0.25%.
Designed for board mount applications, the NSCSHHN015PDUNV operates within a temperature range of -40°C to 85°C. It features a barbed port style with a dual tube connection measuring 0.16 inches (3.94mm). The sensor is housed in a 4-SIP package with dual ports on the same side and utilizes PC Pin termination.
This sensor is suitable for use with non-corrosive, non-ionic gases such as air. The NSC Series offers customers flexibility in performing their own calibration while benefiting from industry-leading stability, accuracy, and repeatability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is ±15 PSI (±103.42 kPa).
It provides a Wheatstone Bridge output ranging from 0 mV to 155 mV.
The operating temperature range is -40°C to 85°C.
It is a 4-SIP package designed for through-hole mounting.
The accuracy is ±0.25%.
The sensor requires a supply voltage between 1.5V and 12V.
