NSBC143ZPDP6T5G The On Semiconductor NSBC143ZPDP6T5G is a 2 NPN pre-biased transistor array designed for simplified circuit design and reduced board space. It features a 50V collector-emitter voltage and 100mA continuous collector current.
Mfr Part #:

NSBC143ZPDP6T5G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor NSBC143ZPDP6T5G is a 2 NPN pre-biased transistor array designed for simplified circuit design and reduced board space. It features a 50V collector-emitter voltage and 100mA continuous collector current.
✓ Total Stock: 496,000 pcs
$ Price Range: $0.99

NSBC143ZPDP6T5G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
496,000 pcs
On Request
496000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NSBC143ZPDP6T5G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Halogen Free
Mounting Type
Power
Resistor
Supplier Device Package
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

NSBC143ZPDP6T5G Description

Short technical summary and product information.

The NSBC143ZPDP6T5G from On Semiconductor is a digital transistor designed to replace a single transistor and its external bias resistor network. This pre-biased transistor integrates a monolithic bias network, consisting of a series base resistor and a base-emitter resistor, into a single device. This integration simplifies circuit design, reduces component count, and saves valuable board space.



This NPN transistor array offers a collector-emitter voltage (VCEO) of 50V and a continuous collector current (IC) of 100mA. It includes a nominal 47kΩ base-emitter resistor (R2) and a series base resistor (R1) of 4.7kΩ, as indicated in the datasheet for similar parts. The device has a DC current gain (hFE) of at least 80 at 5mA and 10V, with a Vce saturation of a maximum of 250mV at 1mA and 10mA.

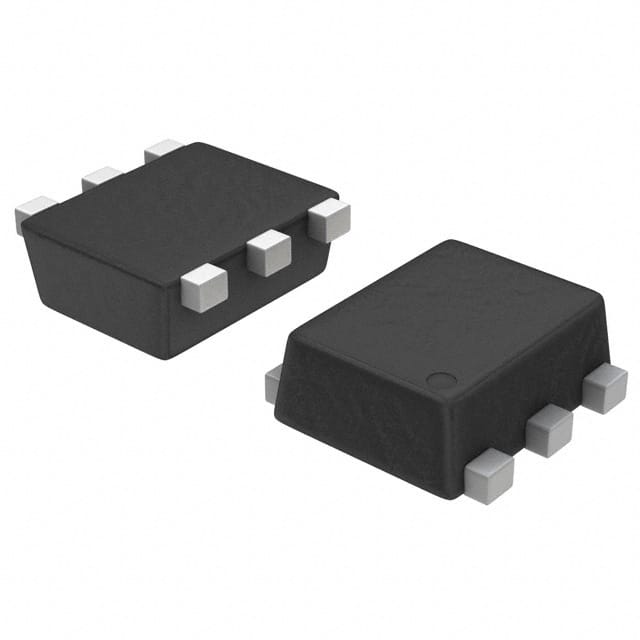

Packaged in a compact SOT-963 surface-mount package, the NSBC143ZPDP6T5G is suitable for applications where space is a constraint. It operates with a maximum input forward voltage of 30Vdc and a maximum input reverse voltage of 5Vdc. The device is also noted as being Pb-Free, Halogen Free/BFR Free, and RoHS Compliant, with an MSL rating of 1.

NSBC143ZPDP6T5G Quick Information

Product Type: Transistor
Canonical Name: 2 NPN Pre-Biased Transistor
Subcategory: Pre-Biased Transistor Array

NSBC143ZPDP6T5G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

NSBC143ZPDP6T5G Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NSBC143ZPDP6T5G Features

  • Dual NPN pre-biased transistor array.
  • Simplifies circuit design and reduces component count.
  • 50V collector-emitter voltage rating.
  • 100mA continuous collector current.
  • Compact SOT-963 surface-mount package.

NSBC143ZPDP6T5G Applications

  • Ideal for digital logic circuits.
  • Suitable for space-constrained designs.
  • Used in signal switching applications.
  • Reduces component count in bias networks.

NSBC143ZPDP6T5G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage for the NSBC143ZPDP6T5G?

The collector-emitter voltage (VCEO) for the NSBC143ZPDP6T5G is 50 Vdc.

What is the continuous collector current of the NSBC143ZPDP6T5G?

The continuous collector current (IC) for the NSBC143ZPDP6T5G is 100 mAdc.

What package type is the NSBC143ZPDP6T5G available in?

The NSBC143ZPDP6T5G is available in a SOT-963 package.

What is the power dissipation rating for the NSBC143ZPDP6T5G?

The power dissipation (PD) for the NSBC143ZPDP6T5G is 339mW at 25°C.

What is the DC current gain (hFE) of the NSBC143ZPDP6T5G?

The DC current gain (hFE) is a minimum of 80 at 5mA and 10V.

What is the Vce saturation voltage for the NSBC143ZPDP6T5G?

The Vce saturation (VCE(sat)) is a maximum of 250mV at 1mA and 10mA.

Does the NSBC143ZPDP6T5G meet RoHS standards?

Yes, the NSBC143ZPDP6T5G is RoHS3 Compliant.
