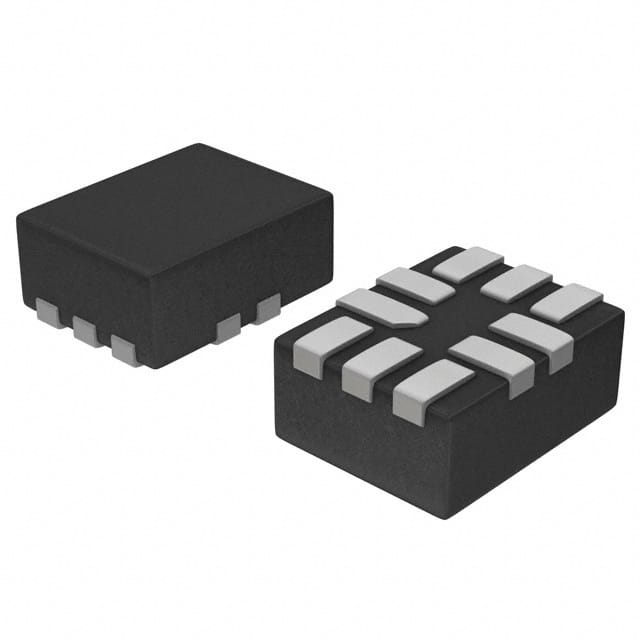

The ON Semiconductor NS5A4684SMNTBG is an advanced CMOS analog switch designed for various applications. This dual, independent Single Pole Double Throw (SPDT) switch offers ultra-low on-resistance of 400 mOhm maximum.
It operates from a single supply voltage ranging from 1.65V to 5.5V and supports full 0-VCC signal handling. The device guarantees Break Before Make (BBM) switching, ensuring reliable operation. Key electrical characteristics include high isolation of -68 dB at 100 kHz, low crosstalk of -70 dB at 100 kHz, and low distortion of less than 0.08% THD.
With a high continuous current capability of 300 mA per switch, the NS5A4684SMNTBG is suitable for demanding applications. It features low standby current and is available in a compact 1.4 x 1.8 x 0.75 mm WQFN10 package, designed for surface mounting.
Applications include cell phone audio blocks, speaker and earphone switching, and ring-tone chip/amplifier switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum on-resistance is 400 mOhm.
The operating voltage range is 1.65V to 5.5V.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 Compliant.
It is supplied in a 10-WQFN package.
