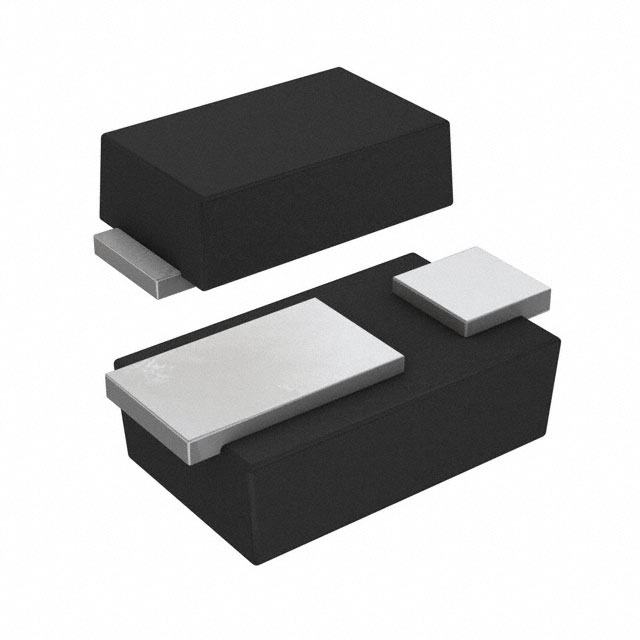

The NRVS1JHE is a surface-mount standard recovery rectifier diode designed for general purpose rectification. It has a peak repetitive reverse voltage of 600V and an average forward rectified current of 1A. The device can handle a peak forward surge current of 20A. Forward voltage is typically 1.1V at 1A. Reverse recovery time is 782 ns typical. Junction capacitance is 3 pF at 4V. Operating temperature range is -55°C to +175°C. The diode is housed in a low-profile SOD-323HE package (2-SMD, flat lead) with a height less than 0.75 mm. It is supplied in tape and reel packaging with 3000 pieces per reel. The part is RoHS compliant and MSL level 1. The NRV prefix indicates automotive qualification (AEC-Q101) and PPAP capability. Typical applications include power supplies, converters, and freewheeling diodes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.40 | $0.40 |
| 100+ | $0.26 | $0.26 |
| 500+ | $0.20 | $0.20 |
| 1,000+ | $0.17 | $0.17 |
| 3,000+ | $0.14 | $0.14 |
| 6,000+ | $0.13 | $0.13 |
| 9,000+ | $0.12 | $0.12 |
| 24,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600 V.
1 A.
Maximum 1.1 V at IF = 1 A.
Typical 782 ns at IF = 0.5 A, IR = 1.0 A, Irr = 0.25 A.
Surface-mount SOD-323HE (2-SMD, flat lead) package.
20 A for 8.3 ms single half sine-wave.
-55°C to +175°C.
