| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage |

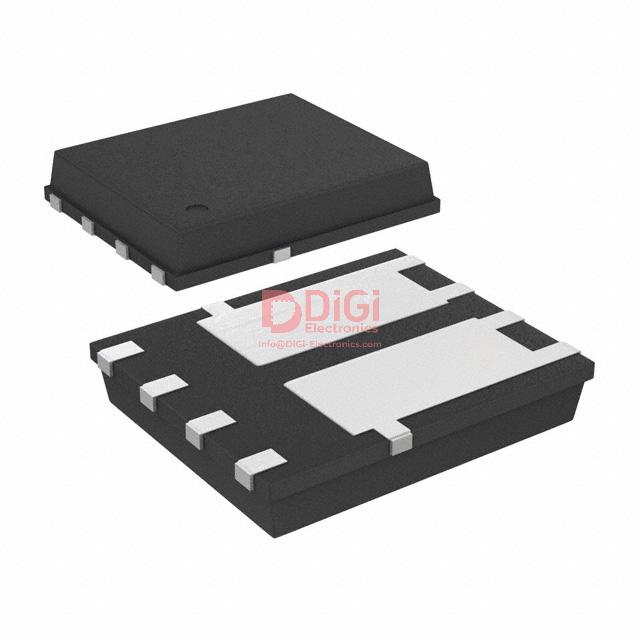

The NRVHP620MFDT3G is an ultrafast rectifier designed for switch-mode power applications. It features two electrically independent diodes within a single package, offering design flexibility. The device boasts a peak repetitive reverse voltage of 200V and an average rectified forward current of 3A per diode.
With a fast recovery time of less than 500ns, this rectifier is suitable for output rectification in switching power supplies and as a freewheeling diode with inductive loads. The 8-PowerTDFN package with a dual flag SO8FL design provides a low thermal resistance and a compact board footprint, making it an excellent alternative for space-constrained automotive applications.
Key electrical characteristics include a low forward voltage drop and a low leakage current. The operating temperature range is -55°C to 175°C, ensuring reliable performance in demanding environments. The component is Pb-Free and Halide-Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage rating is 200V.
The average rectified forward current per diode is 3A.
The forward voltage drop is 940mV at 3A.
The reverse recovery time is less than 500ns.
It is in an 8-PowerTDFN package.
The operating temperature range is -55°C to 175°C.
