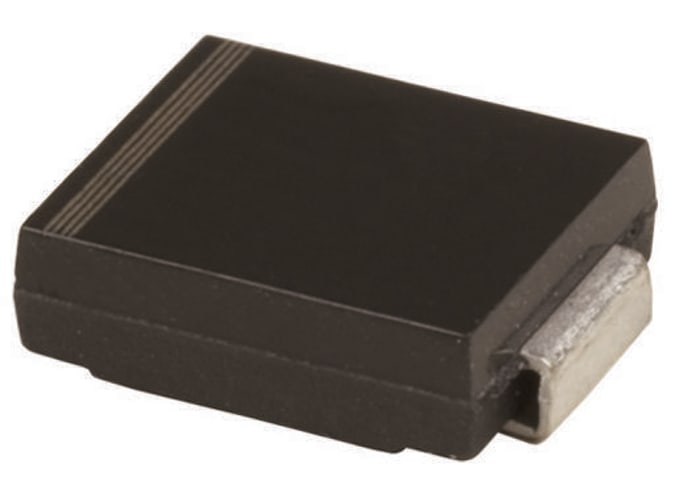

NRVBS3100T3G The ON Semiconductor NRVBS3100T3G is a Schottky diode designed for surface mount applications. It features a 100V reverse voltage rating and a 3A continuous forward current.
Mfr Part #:

NRVBS3100T3G

Available from 1 distributors
Mfr Name: Harting
Harting
The ON Semiconductor NRVBS3100T3G is a Schottky diode designed for surface mount applications. It features a 100V reverse voltage rating and a 3A continuous forward current.
✓ Total Stock: 50 pcs

NRVBS3100T3G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NRVBS3100T3G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diode Type
Halogen Free
Height
Lead Style
Length
Mounting Type
SVHC Present
Tape & Reel
View Similar Products (0)

NRVBS3100T3G Description

Short technical summary and product information.

The ON Semiconductor NRVBS3100T3G is a Schottky barrier power rectifier suitable for low voltage, high-frequency rectification, freewheeling, and polarity protection applications. It is designed for optimal automated board assembly and features a compact, lightweight epoxy molded case.



Key electrical specifications include a maximum continuous forward current of 3A and a peak reverse repetitive voltage of 100V. The maximum forward voltage is 790mV at 1mA, and the peak non-repetitive forward surge current is 130A. The diode operates within a temperature range of -65°C to 175°C.



Packaged in a DO-214AA surface mount case, this diode is ideal for applications where size and weight are critical. It is also noted as being Pb-Free.



This component is part of the Schottky Diodes & Rectifiers category, offering efficient rectification with a low forward voltage drop.

NRVBS3100T3G Quick Information

Product Type: Schottky Diode
Series: NRVBS
Canonical Name: onsemi NRVBS3100T3G Schottky Diode
Subcategory: Schottky Diode

NRVBS3100T3G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

NRVBS3100T3G Features

  • 100V peak reverse voltage rating.
  • 3A maximum continuous forward current.
  • Low 790mV maximum forward voltage.
  • DO-214AA surface mount package.
  • Wide -65°C to 175°C operating temperature.

NRVBS3100T3G Applications

  • Suitable for low voltage rectification.
  • Ideal for high-frequency applications.
  • Used for freewheeling diode function.
  • Provides polarity protection in circuits.
  • Compact size for space-constrained designs.

NRVBS3100T3G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak reverse repetitive voltage?

100V

What is the maximum continuous forward current?

3A

What is the maximum forward voltage drop?

790mV at 1mA

What package type does this rectifier use?

DO-214AA (SMB)

What is the operating temperature range?

-65°C to 175°C

What is the peak non-repetitive forward surge current?

130A

What is the maximum peak reverse current?

5mA
