| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
464,837 pcs
|
464837 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q101 | |
| Automotive Grade | |
| Average Rectified Forward Current | |
| Current | |
| Mounting Type | |
| Non-Repetitive Peak Surge Current | |
| Operating Temperature | |
| Peak Repetitive Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Storage Temperature Range (Minimum/Maximum) | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Thermal Resistance - Junction to Case | |
| Thermal Resistance Junction-to-Ambient | |
| Voltage | |
| Weight |
The NRVBB4030T4G is a Schottky barrier rectifier diode from ON Semiconductor, designed for switch-mode power supplies and automotive applications. It features a peak repetitive reverse voltage of 30V and an average rectified forward current of 40A at TC=+115°C. The forward voltage is typically 550mV at 40A, and the non-repetitive peak surge current reaches 300A (60Hz halfwave).
Operating junction temperature ranges from -65°C to 175°C, with thermal resistance junction-to-case of 1.0°C/W typical. The device is AEC-Q101 qualified and PPAP capable, making it suitable for automotive systems. It includes guardring for stress protection and maximum die size.

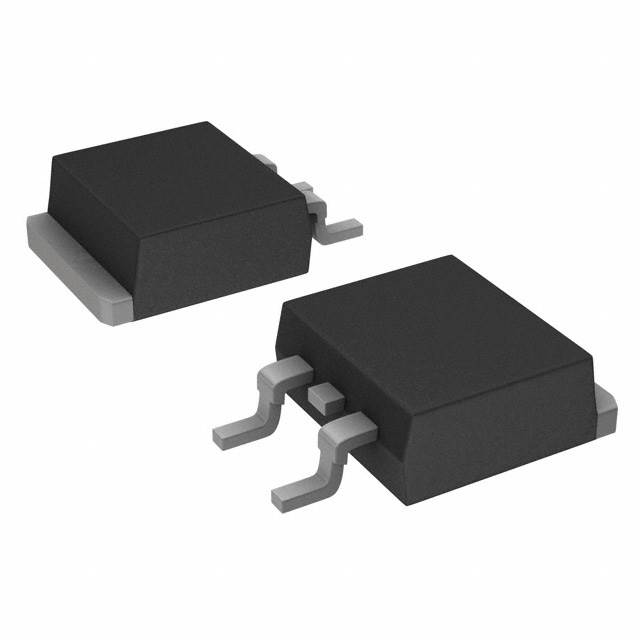

The part is housed in a surface mount D2PAK package (TO-263-3, D²Pak) with an approximate weight of 1.7 grams. It meets MSL1 moisture sensitivity requirements and is Pb-Free. The NRVBB prefix indicates automotive-grade qualification.
The peak repetitive reverse voltage is 30V.
The average rectified forward current is 40A at TC=+115°C.
The forward voltage is 550mV at 40A.
It is available in a surface mount D2PAK package (TO-263-3, D²Pak).
The operating junction temperature range is -65°C to 175°C.
Non-repetitive peak surge current is 300A (60Hz halfwave).
Yes, it is AEC-Q101 qualified.
