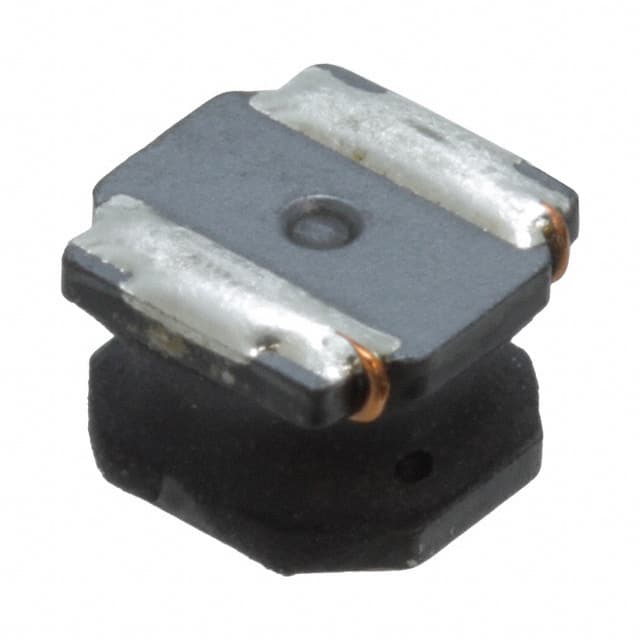

NRS6045T100MMGKV The Taiyo Yuden NRS6045T100MMGKV is a shielded, wire wound inductor with a 10µH inductance and a rated current of 2.4A. It features a surface mount package and AEC-Q200 qualification.
Mfr Part #:

NRS6045T100MMGKV

Available from 3 distributors
Mfr Name: Taiyo Yuden
Taiyo Yuden
The Taiyo Yuden NRS6045T100MMGKV is a shielded, wire wound inductor with a 10µH inductance and a rated current of 2.4A. It features a surface mount package and AEC-Q200 qualification.
✓ Total Stock: 31,530 pcs
$ Price Range: $0.20

NRS6045T100MMGKV Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NRS6045T100MMGKV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Ratings
Self Resonant Frequency
Shielding
Tolerance
Type
Width
View Similar Products (0)

NRS6045T100MMGKV Description

Short technical summary and product information.

The Taiyo Yuden NRS6045T100MMGKV is a wire wound inductor designed for industrial and automotive applications. It offers a nominal inductance of 10µH with a tolerance of ±20% and a rated current of 2.4A. The inductor is shielded and features a drum core construction.



With a compact 6.0x6.0x4.5mm size, this surface mount inductor is suitable for space-constrained designs. It operates within a temperature range of -40°C to +125°C and is AEC-Q200 qualified, indicating its suitability for demanding automotive environments. The DC resistance is a maximum of 59.8mΩ, and it has a self-resonant frequency of at least 12MHz.



This component is RoHS and Halogen Free compliant, making it a reliable choice for various electronic circuits requiring stable inductance characteristics.

NRS6045T100MMGKV Quick Information

Product Type: Fixed Inductor
Series: NR series S type
Canonical Name: Taiyo Yuden NRS6045T100MMGKV Wire Wound Inductor
Subcategory: Wire Wound

NRS6045T100MMGKV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NRS6045T100MMGKV Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

NRS6045T100MMGKV Features

  • Wire wound drum core construction.
  • 10µH inductance with ±20% tolerance.
  • Rated for 2.4A current.
  • AEC-Q200 qualified for automotive use.
  • Compact 6.0x6.0x4.5mm SMD package.

NRS6045T100MMGKV Applications

  • Suitable for automotive applications.
  • Used in industrial power circuits.
  • Ideal for filtering applications.
  • Designed for high reliability needs.

NRS6045T100MMGKV FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the NRS6045T100MMGKV?

The inductance value is 10 µH with a tolerance of ±20%.

What is the rated current for this inductor?

The rated current is 2.4 A.

What is the maximum DC resistance (DCR) of the NRS6045T100MMGKV?

The maximum DC resistance is 59.8 mΩ.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

Is this inductor AEC-Q200 qualified?

Yes, the NRS6045T100MMGKV is AEC-Q200 qualified.

What are the dimensions of the inductor?

The dimensions are 6.0mm in length, 6.0mm in width, and a maximum height of 4.5mm.

What is the standard packaging quantity?

The standard packaging quantity is 1500 pieces on tape and embossed reel.
