| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
235 pcs
|
235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Case Size | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Dimension E | |
| Dimension F | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Inductance Tolerance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Saturation Current | |
| Self Resonant Frequency | |
| Shielding | |
| Standard Package Quantity | |
| Tape & Reel | |
| Temperature Characteristic | |
| Temperature Rise Current | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Typical/Maximum) |

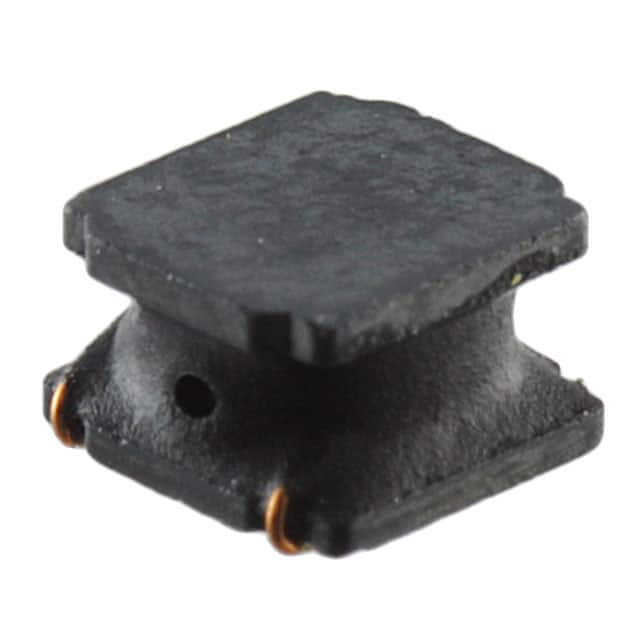

The TAIYO YUDEN NRG4026T100M is a shielded, surface mount fixed inductor designed for general electronic equipment. This component offers a nominal inductance of 10 µH with a tolerance of ±20%. It has a rated current of 1A and a saturation current of 1A, with a temperature rise current of 1.3A.
The inductor has a maximum DC resistance of 110.5 mΩ and a typical DC resistance of 85 mΩ. Its self-resonant frequency is a minimum of 26 MHz. The operating temperature range is -25°C to 120°C, including self-generated heat. The temperature characteristic for inductance change is ±20%.
Constructed with a ferrite material and a drum core wirewound type, the NRG4026T100M measures 4.0x4.0x2.6mm. It is suitable for reflow soldering processes. The component is RoHS and Halogen Free compliant.
This part is intended for use in general electronic equipment such as AV equipment, OA equipment, home electric appliances, and communication equipment. It is not recommended for applications requiring extremely high safety and reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 10 uH with a tolerance of ±20%.
The rated current is 1A.
The typical DC resistance is 85 mΩ.
The operating temperature range is -25°C to 120°C.
The package size is 4.0x4.0x2.6mm.
Yes, the NRG4026T100M is Halogen Free.
