| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,066 pcs
|
10066 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
9,852 pcs
|
9852 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,357 pcs
|
1357 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The Nordic Semiconductor NRF52833-QIAA-R is an ultra-low power multiprotocol SoC designed for a wide range of commercial and industrial applications. It integrates a 64 MHz Arm Cortex-M4 processor with an FPU, 512 KB of Flash memory, and 128 KB of RAM, enabling complex applications.
This SoC supports multiple wireless protocols including Bluetooth 5.1 (with Direction Finding, Long Range, and mesh capabilities), IEEE 802.15.4, Thread, and Zigbee, operating in the 2.4 GHz frequency band. It offers a TX power of +8 dBm and a sensitivity of -95 dBm at 1 Mbps.
The NRF52833-QIAA-R is qualified for an extended temperature range of -40°C to 105°C, making it suitable for demanding environments. It features a versatile set of interfaces including NFC-A, a 12-bit ADC, full-speed USB 2.0, high-speed SPI, UART, I2S, and PDM. The device operates from a supply voltage range of 1.7V to 5.5V.
Packaged in a 73-QFN (7x7) with an exposed pad, this SoC is designed for surface mounting. Its integrated DC-DC regulator and automated power management system contribute to its ultra-low power consumption, with typical currents of 4.8 mA in TX and 4.6 mA in RX.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.75 | $3.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NRF52833-QIAA-R operates in an extended temperature range from -40°C to 105°C.
This SoC has 512 KB of Flash memory and 128 KB of RAM.
The NRF52833-QIAA-R supports Bluetooth 5.1, Thread, and Zigbee protocols.
The maximum TX power for this device is +8 dBm.
The supply voltage range is from 1.7V to 5.5V.

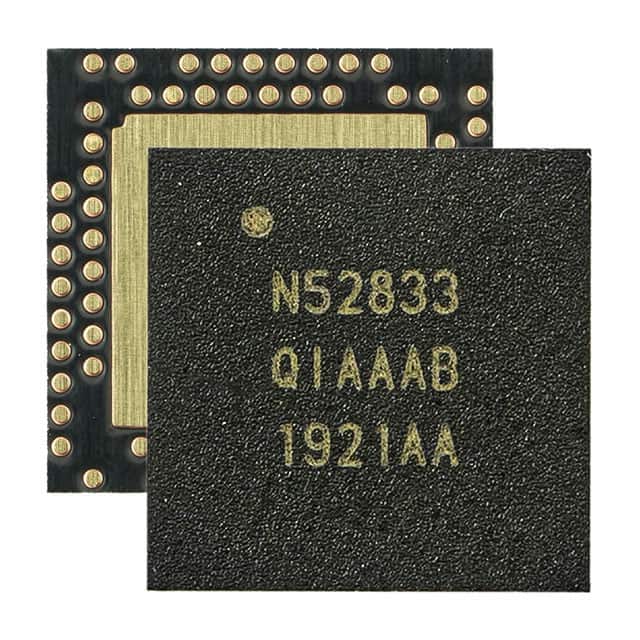

The NRF52833-QIAA-R is supplied in a 73-QFN (7x7) package with an exposed pad, designed for surface mounting.
