| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
994 pcs
|
994 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |

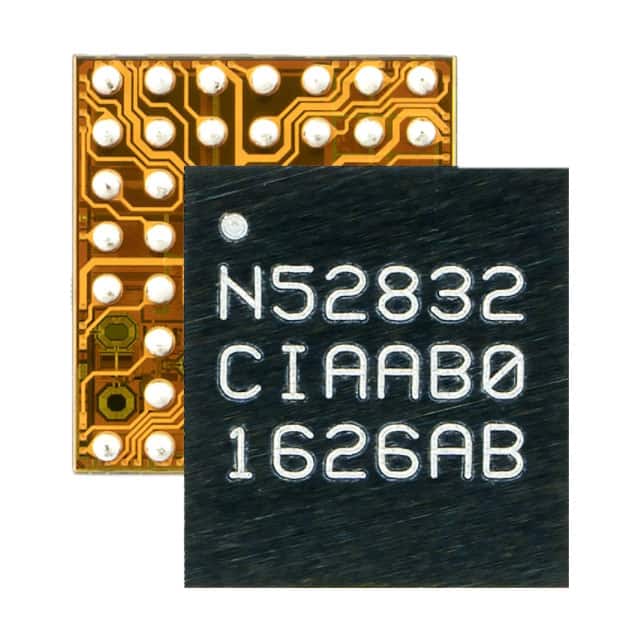

The NRF52832-CIAA-G-R is a versatile RF Transceiver IC with an integrated MCU, manufactured by NORDIC SEMICONDUCTEUR. It supports the latest Bluetooth v5.3 protocol and operates in the 2.4GHz frequency band, offering a maximum data rate of 2Mbps.
Key electrical specifications include a wide operating voltage range of 1.7V to 3.6V and a power output of 4dBm. The device features a memory configuration of 512kB Flash and 64kB RAM, along with a receiver sensitivity of -96dBm. It supports multiple serial interfaces such as I²S, SPI, and UART, and provides 32 GPIO pins.
Designed for demanding applications, the NRF52832-CIAA-G-R operates within an ambient temperature range of -40°C to 85°C. It is available in compact 50-XFBGA and WLCSP packages, suitable for surface mount applications. The component is classified as RoHS3 Compliant, with an MSL of 1, indicating unlimited shelf life under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.7V to 3.6V.
It is available in 50-XFBGA and WLCSP package types.
The operating temperature range is -40°C to 85°C (TA).
Yes, it is RoHS3 Compliant.
