| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,500 pcs
|
10500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Industrial Grade | |
| Medical Grade | |
| Memory Size | |
| Military Grade | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Protocol | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Type | |
| Voltage Supply |

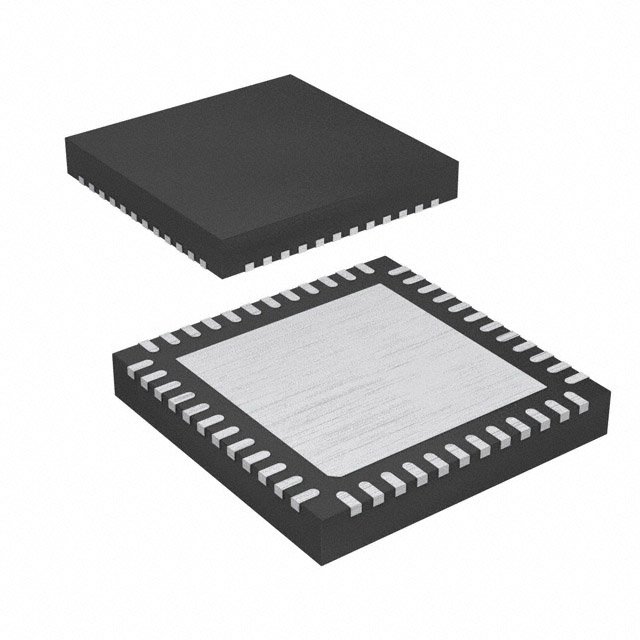

The Nordic Semiconductor ASA NRF51822-QFAC is a versatile RF Transceiver IC designed for Bluetooth and General ISM applications above 1GHz. It supports Bluetooth v4.0 protocol and operates in the 2.4GHz frequency band, offering a maximum data rate of 2Mbps.
This IC features a transmit power of 4dBm and a sensitivity of -96dBm, making it suitable for various wireless communication needs. It is equipped with 256kB of Flash memory and 32kB of RAM, along with I²C, SPI, and UART serial interfaces for flexible integration. The device supports up to 32 GPIO pins and operates within a supply voltage range of 1.8V to 3.6V.
Packaged in a 48-VFQFN Exposed Pad, the NRF51822-QFAC is designed for surface mounting. It operates within a temperature range of -25°C to 75°C. The component is specified as ROHS3 Compliant and REACH Unaffected, with an MSL rating of 2 (1 Year).
This RF Transceiver IC is ideal for applications requiring low-power wireless connectivity, such as IoT devices, wearables, and wireless sensor networks. Its combination of integrated MCU, Bluetooth capabilities, and flexible interfaces allows for efficient development of connected products.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NRF51822-QFAC operates within a temperature range of -25°C to 75°C.
The NRF51822-QFAC is available in a 48-VFQFN Exposed Pad package.
The NRF51822-QFAC supports Bluetooth and General ISM > 1GHz RF families/standards.
The maximum data rate for the NRF51822-QFAC is 2Mbps.
The supply voltage range for the NRF51822-QFAC is 1.8V to 3.6V.
The NRF51822-QFAC includes 256kB Flash and 32kB RAM.
The NRF51822-QFAC supports I²C, SPI, and UART serial interfaces.
