| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,745 pcs
|
11745 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Memory Size | |
| Military Grade | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |

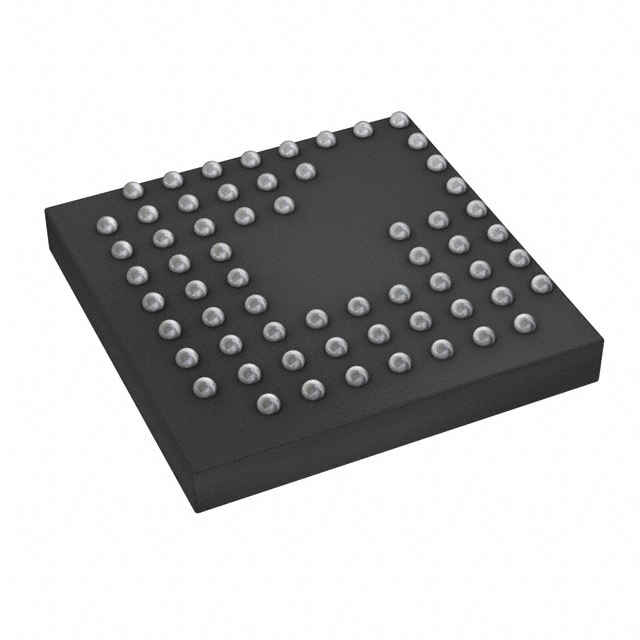

The NORDIC SEMICONDUCTEUR NRF51822-CDAB-R is a versatile RF Transceiver IC with an integrated MCU, designed for Bluetooth v4.0 applications. It operates in the 2.4GHz frequency band and supports a maximum data rate of 2Mbps.
Key electrical specifications include an operating voltage range of 1.8V to 3.6V, current consumption between 9.7mA and 13.4mA, and an output power of 4dBm. The device offers a receiver sensitivity of -96dBm. It features 32 GPIO pins and supports serial interfaces such as I²C, SPI, and UART.
Memory capabilities include 128kB of Flash and 16kB of RAM. The operating temperature range is -25°C to 75°C. This component is supplied in a compact 56-UFBGA, WLCSP package suitable for surface mounting.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status, though these are currently unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 1.8V to 3.6V.
It is supplied in a 56-UFBGA, WLCSP package.
The operating temperature range is -25°C to 75°C.
The status is RoHS3 Compliant.
