| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,980 pcs
|
2980 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request | |
|
1,922 pcs
|
1922 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| AES Co-processor | |
| Crystal Oscillator Frequency | |
| Current | |
| Data Rate (Max) | |
| Flash Memory | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Output Power (Minimum/Maximum) | |
| Power | |
| Processor | |
| Protocol | |
| RAM | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage (Minimum/Maximum) | |
| Type | |
| Voltage |
The Nordic Semiconductor NRF51422-CEAA-R is a powerful multiprotocol wireless System-on-Chip designed for ANT and Bluetooth low energy applications. It integrates a 32-bit ARM Cortex-M0 processor, offering significant code density and execution speed compared to older platforms. This SoC provides 256kB of flash memory and 16kB of RAM, enabling complex application development independent of the protocol stack.
The device operates in the 2.4GHz frequency band and supports protocols such as ANT and Bluetooth v4.0. Key electrical specifications include a programmable output power from +4dBm down to -20dBm, a receiver sensitivity of -96dBm, and a maximum data rate of 2Mbps. It features a 10-bit ADC, a 128-bit AES co-processor, and flexible digital interfaces including I2C, SPI, and UART.

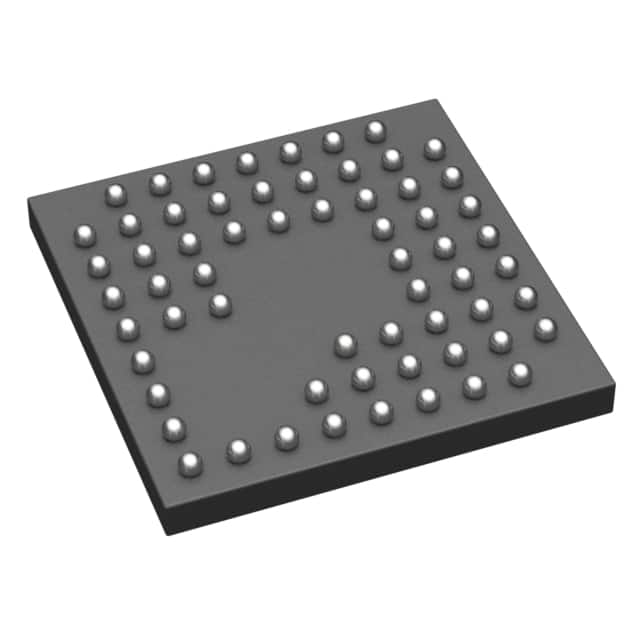

The NRF51422-CEAA-R is available in a 62-UFBGA, WLCSP package and is designed for surface mount installation. It operates within a wide supply voltage range of 1.8V to 3.6V and has an operating temperature range of -25°C to 75°C. Its flexible power management system allows for efficient power consumption, making it suitable for low-power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NRF51422-CEAA-R features a 32-bit ARM Cortex-M0 processor.
This device has 256kB of flash memory and 16kB of RAM.
The NRF51422-CEAA-R operates within a supply voltage range of 1.8V to 3.6V.
The operating temperature range for this component is -25°C to 75°C.
The NRF51422-CEAA-R supports ANT and Bluetooth v4.0 protocols.
The NRF51422-CEAA-R is available in a 62-UFBGA, WLCSP package.
