| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,101 pcs
|
1101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| GPIO | |
| Lead Spacing | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |

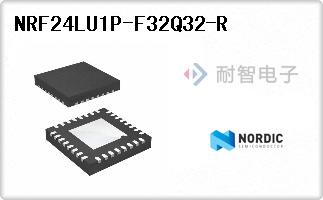

The NRF24LU1P-F32Q32-R is a versatile RF Transceiver IC featuring an integrated microcontroller, designed for applications operating in the 2.4GHz ISM band. This component offers a maximum data rate of 2Mbps and utilizes GFSK modulation.
Key electrical specifications include a transmit power of 0dBm and a receiver sensitivity of -94dBm. It is equipped with 32kB of Flash memory and 2kB of SRAM for program and data storage. The device supports multiple serial interfaces, including SPI, UART, and USB, and provides 6 GPIO pins for flexible integration.
Operating within a voltage range of 4V to 5.25V, the NRF24LU1P-F32Q32-R consumes between 12.9mA and 13.3mA. It is designed for surface mounting and comes in a 32-VFQFN Exposed Pad package, specifically a 32-QFN (5x5) supplier package. The operating temperature range is -40°C to 85°C, making it suitable for a variety of environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NRF24LU1P-F32Q32-R operates between 4V and 5.25V.
The NRF24LU1P-F32Q32-R is supplied in a 32-VFQFN Exposed Pad package.
The NRF24LU1P-F32Q32-R has an operating temperature range of -40°C to 85°C.
The NRF24LU1P-F32Q32-R is RoHS3 Compliant.
