NRF2402G The Nordic Semiconductor NRF2402G is a single-chip 2.4 GHz GFSK RF transmitter. It offers adjustable output power up to 0dBm and a data rate of 1Mbps.
Mfr Part #:

NRF2402G

Available from 1 distributors
Mfr Name: NORDIC SEMICONDUCTEUR
NORDIC SEMICONDUCTEUR
The Nordic Semiconductor NRF2402G is a single-chip 2.4 GHz GFSK RF transmitter. It offers adjustable output power up to 0dBm and a data rate of 1Mbps.
✓ Total Stock: 200 pcs
$ Price Range: $2.22

NRF2402G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NRF2402G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Connector
Applications
Current
Data Interface
Data Rate (Max)
Frequency
Modulation or Protocol
Mounting Type
Operating Temperature
Power
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

NRF2402G Description

Short technical summary and product information.

The NRF2402G from Nordic Semiconductor is a true single-chip GFSK transmitter designed for the 2.4 GHz ISM band. This compact device integrates a frequency synthesizer, power amplifier, crystal oscillator, and modulator, making it suitable for wireless data communication applications.



Key electrical specifications include a supply voltage range of 1.9V to 3.6V, an adjustable output power up to 0dBm, and a maximum GFSK data rate of 1Mbps. The transmitter operates with a typical supply current of 10mA at -5dBm output power and features a low power down current of 200nA. The 3-wire interface allows for easy programming of output power and frequency channel.

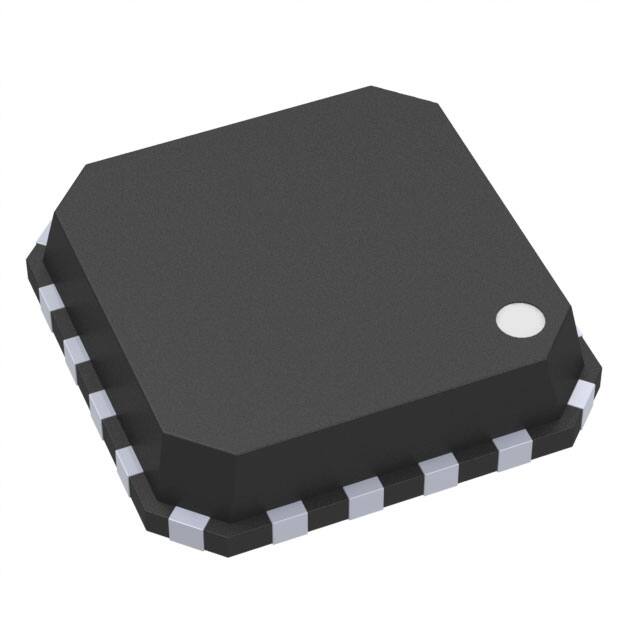

This RF transmitter is housed in a 16-pin QFN (4x4) package with a surface mount type. Its operating temperature range is -40°C to 85°C. Applications include wireless mouse, keyboard, joystick, keyless entry systems, alarm and security systems, home automation, remote control, and telemetry.



The NRF2402G supports multi-channel operation with 128 channels and frequency hopping capabilities, with channel switching times under 200μs. It also includes CRC computation and ShockBurst™ mode for ultra-low power operation.

NRF2402G Quick Information

Product Type: RF Transmitter
Canonical Name: NRF2402G Single Chip 2.4 GHz Radio Transmitter
Subcategory: RF Transmitter

NRF2402G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NRF2402G Estimated Pricing

Qty Low High
1+ $2.22 $2.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

NRF2402G Features

  • True single chip 2.4 GHz GFSK transmitter.
  • Adjustable output power up to 0dBm.
  • Maximum data rate of 1Mbps.
  • Wide supply voltage range: 1.9V to 3.6V.
  • Compact 16-VQFN exposed pad package.

NRF2402G Applications

  • Wireless mouse, keyboard, and joystick.
  • Keyless entry systems.
  • Alarm and security systems.
  • Home automation applications.
  • Wireless data communication.

NRF2402G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the NRF2402G?

The operating voltage range for the NRF2402G is 1.9V to 3.6V.

What is the maximum output power of the NRF2402G?

The maximum output power of the NRF2402G is 0dBm.

What is the maximum data rate supported by the NRF2402G?

The maximum data rate supported by the NRF2402G is 1Mbps.

What type of modulation does the NRF2402G use?

The NRF2402G uses GFSK modulation.

What is the operating temperature range for the NRF2402G?

The operating temperature range for the NRF2402G is -40°C to 85°C.

What package is the NRF2402G available in?

The NRF2402G is available in a 16-VQFN exposed pad package and a 16-QFN (4x4) package.
