| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
371 pcs
|
371 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| Dissipation Factor | |
| Failure Rate | |
| Height | |
| Length | |
| Mounting Type | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

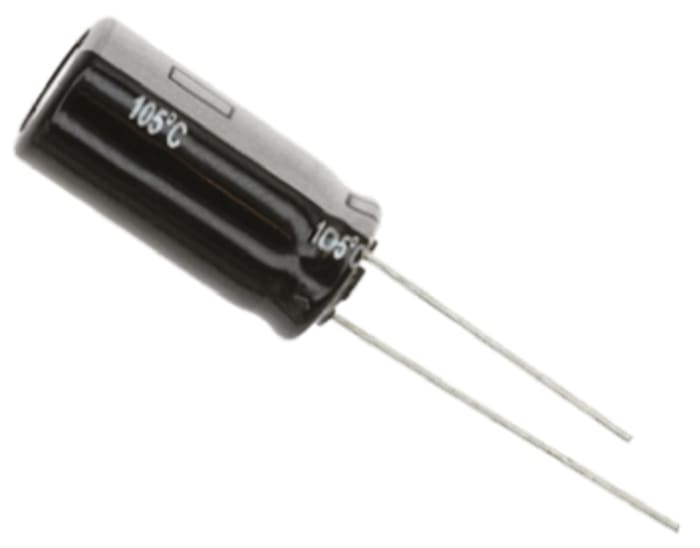

The NIC Components NRB-XS100M500V12.5X20F is an aluminium electrolytic capacitor from the NRB-XS series. It offers a capacitance of 10 μF with a tolerance of ±20% and is rated for a maximum operating voltage of 500V dc.
Designed for through-hole mounting, this capacitor has a radial lead termination style. It operates within a temperature range of -25°C to 105°C and has a specified lifetime of 10000 hours. Key electrical characteristics include a ripple current of 320mA and a dissipation factor of 24%.
The physical dimensions are a diameter of 12.5mm, height of 20mm, length of 20mm, and width of 12.5mm, with a lead pitch of 5mm. The capacitor is supplied in an Ammo Pack standard package.
This component is suitable for various electronic applications requiring stable capacitance and voltage handling. Its construction and specifications make it a reliable choice for power supply filtering and energy storage circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 10 μF.
The maximum DC voltage rating is 500V dc.
The operating temperature range is -25°C to 105°C.
It uses radial through-hole mounting.
The rated lifetime is 10000 hours.
