| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,226 pcs
|
1226 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,030 pcs
|
1030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

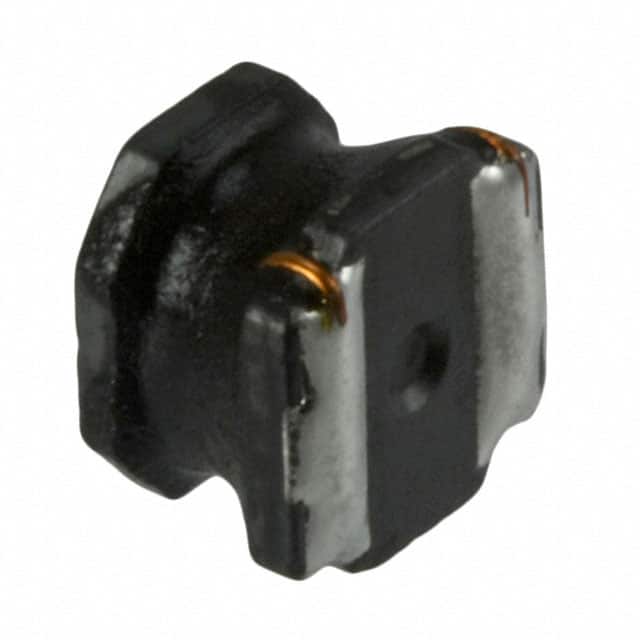

This Taiyo Yuden NR5040T4R7N is a fixed inductor designed for surface mount applications. It utilizes a drum core and wirewound construction with a ferrite material.
The inductor offers an inductance value of 4.7 µH with a tolerance of ±30%. It is rated for a current of 3.1A and has a maximum DC resistance of 37.7mOhm. The operating temperature range is -25°C to 120°C, and it operates at a frequency of 28MHz.
Key electrical characteristics include a 3.3A current handling capability and a shielded design. The component measures 4.90mm in length, 4.90mm in width, and 4.10mm in height. It is classified as RoHS3 Compliant, MSL 1, and REACH Unaffected.
This part is suitable for various electronic circuits requiring stable inductance and current handling in a compact surface mount package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 4.7 µH.
The current rating is 3.1 A.
The maximum DC resistance is 37.7mOhm.
The operating temperature range is -25°C to 120°C.
It is a shielded, drum core, wirewound inductor made of ferrite.
The dimensions are 4.90mm in length, 4.90mm in width, and 4.10mm in height.
