| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,620 pcs
|
2620 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

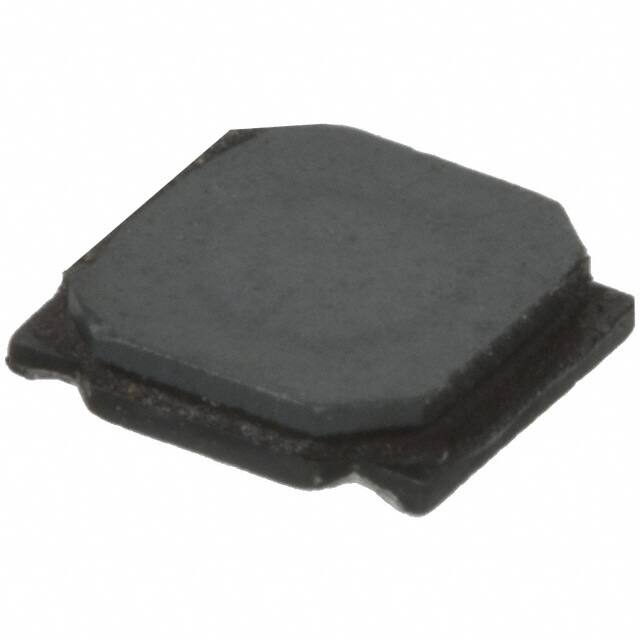

The Taiyo Yuden NR4010T2R2N is a shielded, wirewound fixed inductor designed for surface mounting. It offers an inductance of 2.2 µH with a tolerance of ±30% and a maximum DC resistance of 180 mOhm.
This component operates within a temperature range of -25°C to 120°C and has a current rating of 890 mA. The inductor is constructed with a ferrite core and comes in a nonstandard package with dimensions of 4.00mm x 4.00mm x 1.00mm.
Key electrical characteristics include a frequency response up to 73MHz and a maximum current handling of 1.15A. The NR4010T2R2N is suitable for various electronic applications requiring stable inductance and current handling capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the NR4010T2R2N is 2.2 µH.
The current rating for the NR4010T2R2N is 890 mA.
The maximum DC resistance (DCR) for the NR4010T2R2N is 180 mOhm.
The operating temperature range for the NR4010T2R2N is -25°C to 120°C.
The NR4010T2R2N uses a nonstandard package and is designed for surface mounting.
