NR111E The Sanken NR111E is an adjustable buck switching regulator designed for step-down voltage conversion. It offers a 4A output current capability.
Mfr Part #:

NR111E

Available from 2 distributors
Mfr Name: Sanken
Sanken
The Sanken NR111E is an adjustable buck switching regulator designed for step-down voltage conversion. It offers a 4A output current capability.
✓ Total Stock: 54,569 pcs
$ Price Range: $1.08

NR111E Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
54,560 pcs
On Request
54560 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NR111E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

NR111E Description

Short technical summary and product information.

The Sanken NR111E is a DC-DC switching regulator in the buck topology, designed for step-down voltage conversion applications. It features an adjustable output voltage range from 0.8V to 24V, with a maximum input voltage of 31V and a minimum input voltage of 6.5V. This device can deliver up to 4A of output current and operates at a switching frequency of 350kHz. The NR111E is suitable for a wide operating temperature range of -40°C to 85°C.

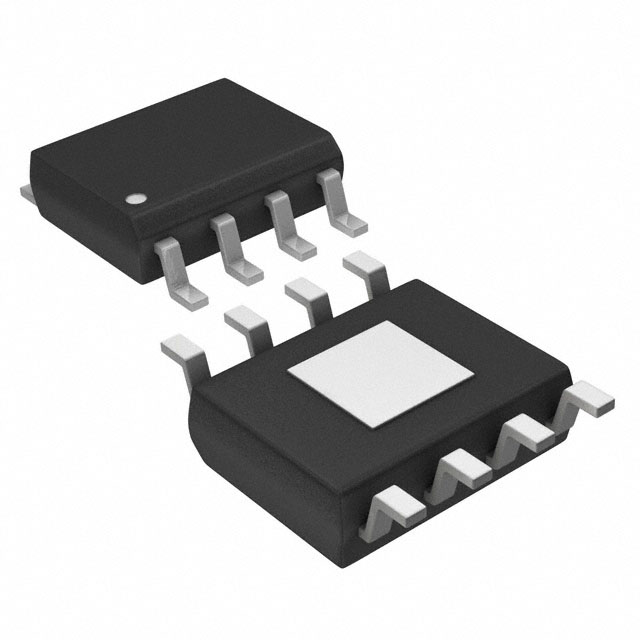

Packaged in an 8-SOIC with an exposed pad, the NR111E is designed for surface mount applications. Its non-synchronous rectifier design and positive output configuration make it a versatile component for power management solutions. The adjustable output type allows for flexible design implementation.



This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is supplied in tape and reel packaging, suitable for automated assembly processes.

NR111E Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: NR111E Sanken Adjustable Buck Switching Regulator
Subcategory: DC DC Switching Regulator

NR111E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NR111E Estimated Pricing

Qty Low High
1+ $1.08 $1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

NR111E Features

  • Adjustable output voltage from 0.8V to 24V.
  • Maximum output current of 4A.
  • Input voltage range of 6.5V to 31V.
  • 350kHz switching frequency.
  • Surface mountable 8-SOIC-EP package.

NR111E Applications

  • Used in point-of-load power supplies.
  • Suitable for industrial and consumer electronics.
  • Ideal for battery-powered devices.
  • Applicable in distributed power architectures.

NR111E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output current capability of the NR111E?

The NR111E can deliver up to 4A of output current.

What is the input voltage range for the NR111E?

The input voltage range for the NR111E is from 6.5V to 31V.

What is the adjustable output voltage range of the NR111E?

The NR111E has an adjustable output voltage ranging from 0.8V to 24V.

What is the operating temperature range for the NR111E?

The NR111E operates within a temperature range of -40°C to 85°C (TA).

What package type is the NR111E supplied in?

The NR111E is supplied in an 8-SOIC package with an exposed pad, designed for surface mounting and available in tape and reel.
