| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

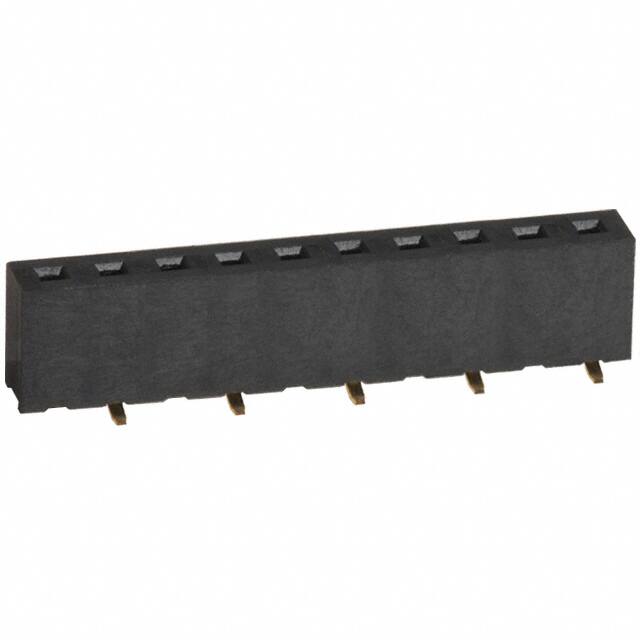

The Sullins Connector Solutions NPPN101BFLC-RC is a 10-position, single row, 2.00mm pitch female header designed for board-to-board applications. It features a surface mount termination style with solder contacts and a push-pull fastening type. The insulator is black and carries a UL94 V-0 flammability rating.
The connector is rated for 2A current and 150V AC/DC. Contact resistance is 20 milliohms maximum, with an insulator resistance of 1000 megohms minimum. The dielectric withstanding voltage is 500 VAC. The operating temperature range is -40°C to 105°C.
Contacts are made of phosphor bronze with a gold flash finish. The insulator material is liquid crystal polymer (LCP). The connector mates with Sullins 2.00mm contact center male header series with 0.50mm square posts.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
| 30+ | $0.94 | $0.94 |
| 120+ | $0.85 | $0.85 |
| 510+ | $0.77 | $0.77 |
| 1,020+ | $0.73 | $0.73 |
| 5,010+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions in a single row.
The pitch is 2.00mm (0.079 inches).
The current rating is 2 amps.
The voltage rating is 150V AC/DC.
It is a surface mount (SMT) connector with solder termination.
The operating temperature range is -40°C to 105°C.
Contacts are phosphor bronze with a gold flash finish.
