| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch - Mating | |
| Rated Voltage | |
| Termination Style |

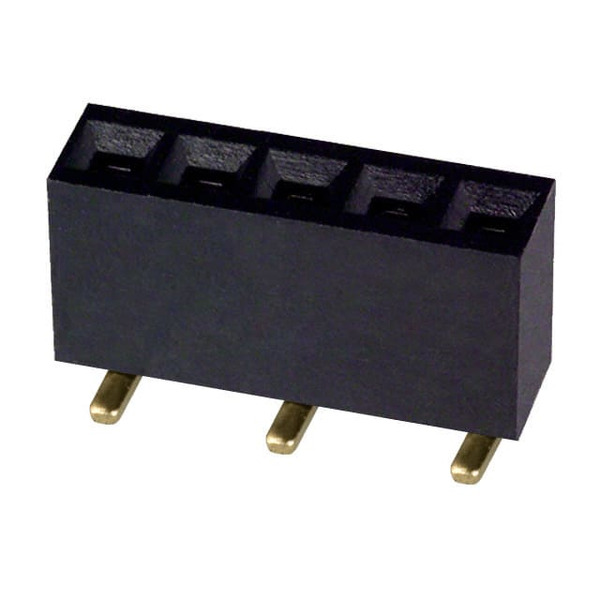

This Sullins Connector Solutions NPPC051KFXC-RC is a header connector with 5 positions and a 0.100 inch (2.54mm) pitch. It is designed for board-to-board applications and features a surface mount termination style with solder connections.
The connector has a current rating of 3A and a rated voltage of 250V. The insulation height is 0.280 inches (7.10mm), and the insulation material is Polyamide (PA6T), Nylon 6T with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.
Key features include a push-pull mating type and a black insulation color. The contact material is Phosphor Bronze with gold plating. The connector is supplied in a tube package with a standard quantity of 48267 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch of the NPPC051KFXC-RC connector is 0.100 inches (2.54mm).
The current rating for the NPPC051KFXC-RC is 3A.
The operating temperature range for the NPPC051KFXC-RC is -40°C to 105°C.
The mounting type for the NPPC051KFXC-RC connector is Surface Mount.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
