| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Conflict Minerals | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Type | |
| Termination Style | |
| Weight | |
| Width |

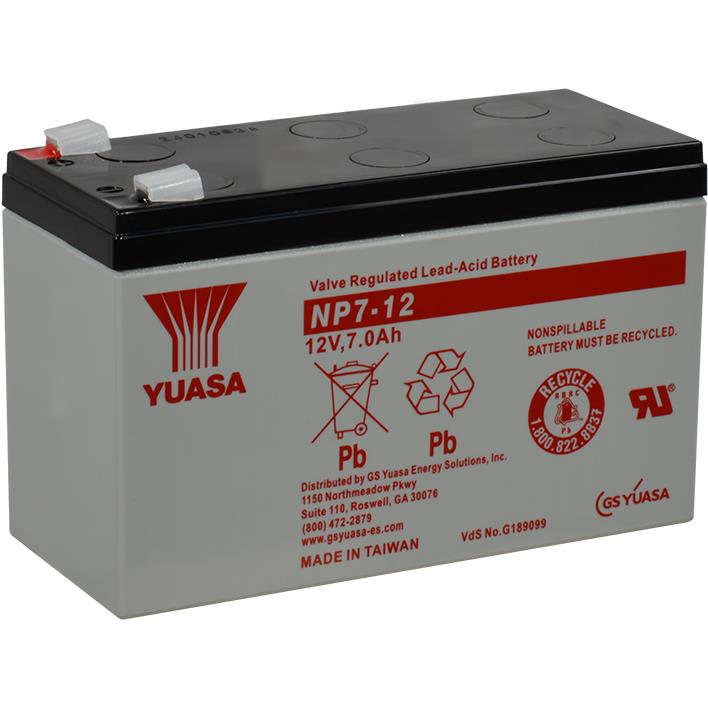

The NP7-12 is a 12V, 7.0Ah VRLA AGM battery from GS Yuasa Energy Solutions, part of the NP/NPX Series with HT X Alloy for extended life. It delivers a nominal voltage of 12V and a capacity of 7.0Ah at the 20-hour rate to 1.75V per cell at 25°C. The battery supports float charging at 2.275V/cell and cyclic charging at 2.45V/cell, with a maximum charge current of 1.750A. It is capable of a 5-second peak discharge of 105A and has a short circuit current of 275A. The internal resistance is approximately 22.0mΩ.
Designed for maintenance-free operation, the NP7-12 uses Absorbed Glass Mat (AGM) technology to immobilize the electrolyte, making it non-spillable and safe for transportation. Its case material is UL94HB or UL94V-0, and terminals are available as Faston .187 in. (F1) or Faston .250 in. (F2). The battery measures 151.0mm x 65.0mm x 94.0mm (case height), with a height over terminal of 97.5mm, and weighs 2.20kg (4.85lbs).
This battery is suitable for a wide range of standby and cyclic applications, including UPS systems, security and fire alarm panels, emergency lighting, and solar support systems. It has a design life of 4-6 years in float service and features a low self-discharge rate of approximately 3% per month at 25°C. The operating temperature range is -15°C to 50°C for charging and -20°C to 60°C for discharge.
The NP7-12 holds multiple certifications: UL recognized component (UL1989), ISO 9001, ISO 14001, IEC 61056-1, IEC 60896-21, TAA Compliant, and DRC Conflict Free. It is also RoHS3 and REACH compliant (unverified from datasheet).
The nominal voltage is 12V.
The capacity is 7.0Ah at the 20-hour rate to 1.75V per cell at 25°C.
It uses Valve Regulated Lead-Acid (VRLA) with Absorbed Glass Mat (AGM) technology.
The charging temperature range is -15°C to 50°C, and the discharging range is -20°C to 60°C.
The terminal options are Faston .187 inch (F1) or Faston .250 inch (F2).
The NP7-12 is listed as RoHS3 compliant, but this is unverified from the datasheet (low confidence).
It is UL recognized (UL1989), ISO 9001, ISO 14001, IEC 61056-1, IEC 60896-21, TAA Compliant, and DRC Conflict Free.
