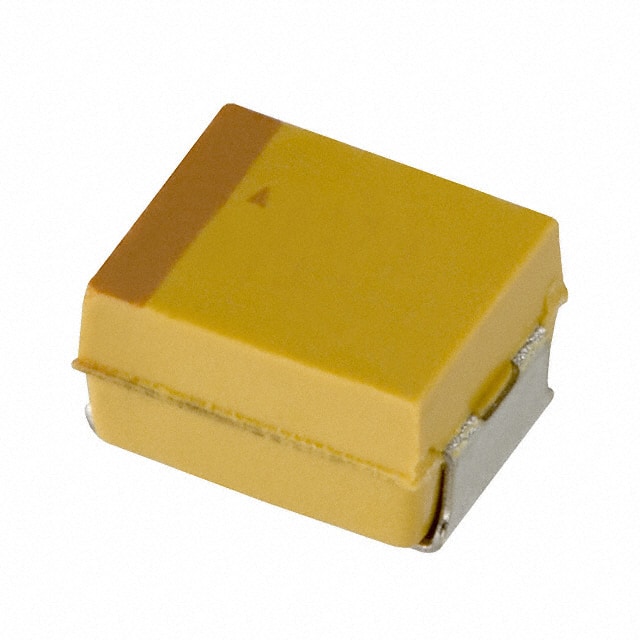

NOJT336M002RWJ 33µF ±20% 2.5V surface mount niobium oxide capacitor in 1210 (3528 Metric) package. J-Lead terminals, tape and reel packaging.
Mfr Part #:

NOJT336M002RWJ

Available from 1 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
33µF ±20% 2.5V surface mount niobium oxide capacitor in 1210 (3528 Metric) package. J-Lead terminals, tape and reel packaging.
✓ Total Stock: 2,500 pcs

NOJT336M002RWJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
2,500 pcs
2500 pcs On Request 1 On Request On Request On Request On Request On Request

NOJT336M002RWJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Q200 Qualified
AEC Qualified
Automotive Grade
Capacitance
Current
Dissipation Factor
ESR (Equivalent Series Resistance)
Height
Lead Style
Length
Manufacturer Size Code
Mounting Type
Operating Temperature
Supplier Device Package
Tape & Reel
Termination Style
Tolerance
Voltage
Width

NOJT336M002RWJ Description

Short technical summary and product information.

The NOJT336M002RWJ is a 33µF niobium oxide capacitor from Kyocera AVX, rated at 2.5V with ±20% tolerance. It is part of the NOJ series and features a 1210 (3528 Metric) surface mount package with J-Lead terminations.



This capacitor offers an equivalent series resistance (ESR) of 1.7Ω and a dissipation factor of 6%. Maximum leakage current is 1.7µA. It is AEC-Q200 qualified and operates over a temperature range of -55°C to 105°C.



Packaged in tape and reel (7" reel), the NOJT336M002RWJ is suitable for automated assembly and is RoHS compliant.

NOJT336M002RWJ Quick Information

Product Type: Niobium Oxide Capacitor
Series: NOJ
Canonical Name: NOJT336M002RWJ Niobium Oxide Capacitor 33µF 2.5V ±20% 1210 (3528 Metric) Surface Mount
Subcategory: Standard Chip

NOJT336M002RWJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

NOJT336M002RWJ Features

  • 33µF capacitance with ±20% tolerance.
  • Rated voltage of 2.5V DC.
  • Low ESR of 1.7Ω typical.
  • Surface mount 1210 J-Lead package.
  • AEC-Q200 automotive qualified.

NOJT336M002RWJ Applications

  • Automotive electronic control modules.
  • DC/DC converter input and output filters.
  • Industrial low voltage control circuits.
  • FPGA and digital circuit decoupling.

NOJT336M002RWJ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance and tolerance of NOJT336M002RWJ?

The capacitance is 33 µF with a tolerance of ±20%.

What is the rated voltage for this capacitor?

The rated voltage is 2.5 V.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.

What is the package / case of NOJT336M002RWJ?

The case size is 1210 (3528 Metric) with J-Lead termination.

Is this capacitor RoHS compliant?

The series is marked RoHS Compliant. Part-specific verification is not available.

What is the ESR (Equivalent Series Resistance)?

The equivalent series resistance is 1.7 Ω.

Is NOJT336M002RWJ AEC-Q200 qualified?

Yes, it meets the requirements of AEC-Q200.
