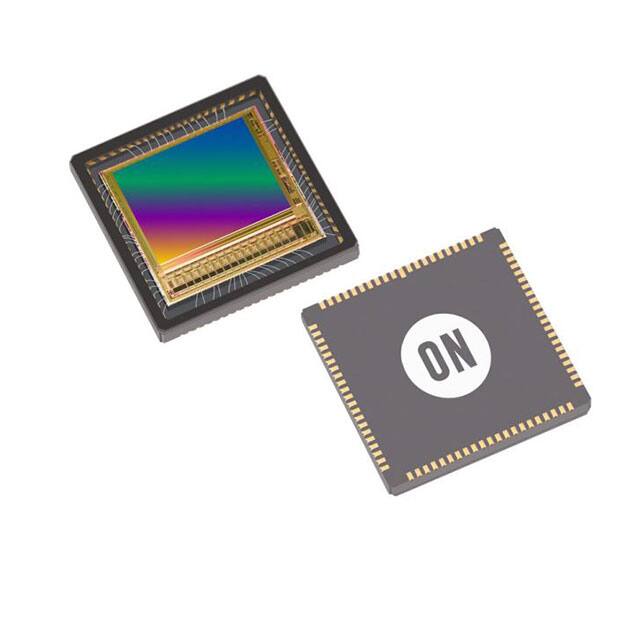

The ON Semiconductor NOIP3SN5000A-QTI is a PYTHON 5000 series global shutter CMOS image sensor designed for high-performance imaging applications. It boasts a 2592 x 2048 active pixel array with 4.8µm x 4.8µm pixels, enabling detailed image capture.
This sensor supports various data output options, including up to 8 LVDS data channels, facilitating frame rates of up to 100 frames per second at full resolution. It features on-chip 10-bit Analog-to-Digital Converters (ADCs), automatic exposure control (AEC), and a programmable region of interest (ROI) readout for enhanced flexibility and efficiency.
The operating temperature range is -40°C to +85°C, and it operates on dual power supplies of 1.8V and 3.3V. The sensor is available in 84-pin LCC and 128-pad LGA packages. It is RoHS3 compliant and Pb-free.
Applications include machine vision, motion monitoring, security systems, and intelligent traffic systems (ITS).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The active pixel array resolution is 2592 pixels horizontally and 2048 pixels vertically.
The pixel size is 4.8µm by 4.8µm.
The operating temperature range is -40°C to +85°C.
The sensor operates on dual power supplies of 1.8V and 3.3V.
The frame rate can reach up to 100 frames per second at full resolution with 8 LVDS data channels.
This device is Pb-Free and RoHS3 Compliant.
