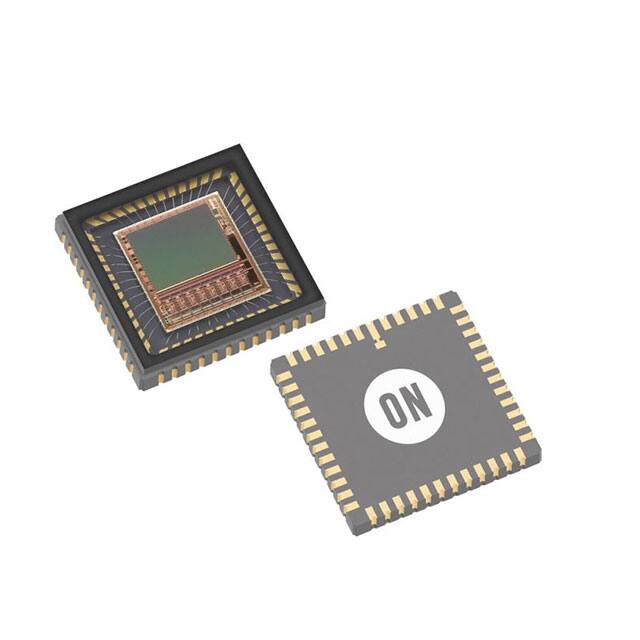

The NOIP3SN1300A-QTI from On Semiconductor is a Global Shutter CMOS Image Sensor from the PYTHON family, specifically the PYTHON 1300 variant. It boasts a high resolution of 1280H x 1024V pixels, with each pixel measuring 4.8µm x 4.8µm. This sensor supports a frame rate of up to 50 frames per second at full resolution.
Designed for demanding applications, it operates within a temperature range of -40°C to +85°C and utilizes a dual power supply of 1.8V and 3.3V. The sensor features an on-chip 10-bit Analog-to-Digital Converter (ADC) and supports various data output options including LVDS and parallel CMOS. It is packaged in a 48-pin LCC.
This image sensor is suitable for applications such as machine vision, motion monitoring, security, and 2D barcode scanning. It is Pb-Free and RoHS Compliant, with an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The active pixel array resolution is 1280H x 1024V.
The pixel size is 4.8µm x 4.8µm.
The operating temperature range is -40°C to +85°C.
The sensor operates with a voltage range of 1.8V to 3.3V.
The frame rate at full resolution (SXGA) is 50 frames per second.
It is supplied in a 48-pin LCC package.
