| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
1,012 pcs
|
1012 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
299 pcs
|
299 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Frame Rate (Typical @ SVGA, P 1, 4 LVDS, NROT) | |
| Frame Rate (Typical @ SVGA, P 1, 4 LVDS, ZROT) | |
| Frame Rate (Typical @ SXGA, CMOS, NROT) | |
| Frame Rate (Typical @ SXGA, CMOS, ZROT) | |
| Frame Rate (Typical @ SXGA, P 1, 4 LVDS, NROT) | |
| Frame Rate (Typical @ SXGA, P 1, 4 LVDS, ZROT) | |
| Frame Rate (Typical @ VGA, P 1, 4 LVDS, NROT) | |
| Frame Rate (Typical @ VGA, P 1, 4 LVDS, ZROT) | |
| Interface | |
| Operating Temperature | |
| Pixel Size | |
| Power Dissipation (Typical @ P 1, 4 LVDS, ZROT) | |
| Power Dissipation (Typical @ P 1, P 3, 1 LVDS, NROT) | |
| Power Dissipation (Typical @ P 1, P 3, 2 LVDS, NROT) | |
| Power Dissipation (Typical @ P 2, ZROT) | |
| Resolution | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Type |

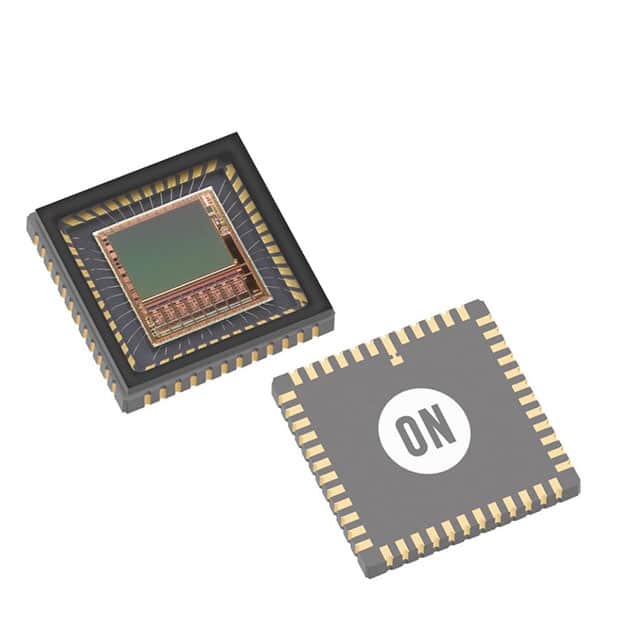

The NOIP1FN1300A-QTI from On Semiconductor is a 1.3 Megapixel CMOS image sensor. It utilizes high sensitivity 4.8µm x 4.8µm pixels supporting global shutter readout modes. The sensor includes an on-chip 10-bit Analog-to-Digital Converter (ADC) and offers multiple data output options including LVDS and Parallel CMOS.
Key features include a wide operating temperature range of -40°C to +85°C and a 48-pin LCC package. The sensor supports various frame rates depending on the resolution and interface used, with up to 210 fps at SXGA resolution with 4 LVDS data channels in ZROT mode. It also features a Serial Peripheral Interface (SPI) for programmability, Automatic Exposure Control (AEC), and High Dynamic Range (HDR) modes.
This image sensor is suitable for applications such as machine vision, motion monitoring, security, and 2D barcode scanning. Its design allows for random programmable Region of Interest (ROI) readout, enabling higher frame rates by reading out specific areas.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensor supports SXGA (1280x1024), SVGA (800x600), and VGA (640x480) resolutions.
The pixel size is 4.8µm x 4.8µm.
The operating temperature range is -40°C to +85°C.
It supports LVDS, Parallel CMOS, and SPI interfaces.
The sensor features an on-chip 10-bit Analog-to-Digital Converter (ADC).
The sensor requires dual power supplies of 3.3 V and 1.8 V.
