| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
841 pcs
|
841 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Data Output Channels | |
| Frame Rate (Typical @ SVGA, NROT) | |
| Frame Rate (Typical @ SVGA, ZROT) | |
| Frame Rate (Typical @ SXGA, NROT) | |
| Frame Rate (Typical @ SXGA, ZROT) | |
| Frame Rate (Typical @ VGA, NROT) | |
| Frame Rate (Typical @ VGA, ZROT) | |
| Lead Spacing | |
| Operating Temperature (Minimum/Maximum) | |
| Optical Format | |
| Pixel Size | |
| Power Dissipation (@ P 1, 4 LVDS, ZROT) | |
| Power Dissipation (@ P 1, P 3, 1 LVDS, NROT) | |
| Power Dissipation (@ P 1, P 3, 2 LVDS, NROT) | |
| Power Dissipation (@ P 2, ZROT) | |
| Power Supply Voltage | |
| Resolution |

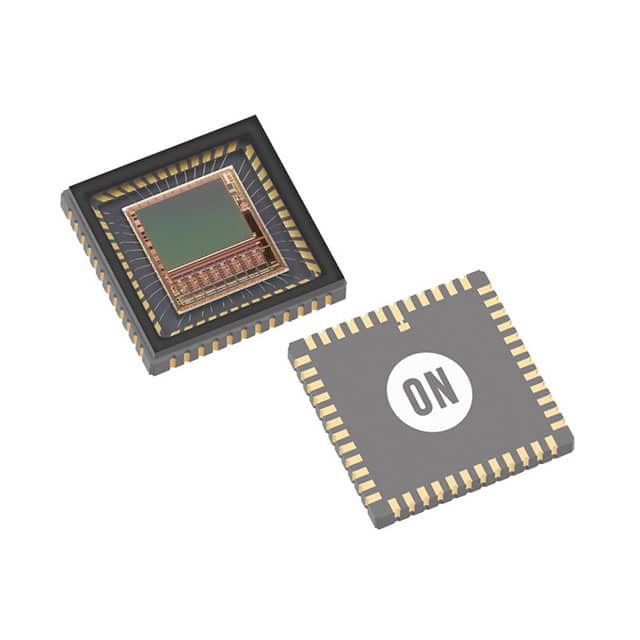

The On Semiconductor NOIP1FN0300A-QTI is a high-performance CMOS image sensor from the PYTHON family. It boasts a resolution of 1280 x 1024 pixels with a 1/2” optical format and utilizes 4.8µm x 4.8µm global shutter pixels with In-pixel CDS for low noise.
This sensor supports multiple data output options, including 4 LVDS data channels, enabling high frame rates. It features an on-chip 10-bit Analog-to-Digital Converter (ADC) and supports automatic exposure control (AEC). The operational temperature range is -40°C to +85°C.
Designed for applications such as machine vision, motion monitoring, and security, the NOIP1FN0300A-QTI is housed in a 48-pin LCC package. Its programmability via SPI allows for region of interest (ROI) readout to achieve higher frame rates.
Key electrical characteristics include dual power supply support (3.3V and 1.8V) and various power dissipation levels depending on the configuration. The sensor is Pb-free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NOIP1FN0300A-QTI image sensor has a resolution of 1280 x 1024 pixels.
The pixel size for the NOIP1FN0300A-QTI is 4.8 µm.
The NOIP1FN0300A-QTI features an on-chip 10-bit Analog-to-Digital Converter (ADC).
The operating temperature range for the NOIP1FN0300A-QTI is -40°C to +85°C.
This image sensor is supplied in a 48-pin LCC package.
