| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADCs | |
| Active Pixel Array | |
| Active Pixels | |
| Frame Rate | |
| Frames per Second | |
| Interface | |
| Operating Temperature | |
| Optical Format | |
| Pixel Size | |
| Power Dissipation | |
| SPI | |
| Serial Outputs | |
| Shutter | |
| Supplier Device Package | |
| Type | |
| Voltage |

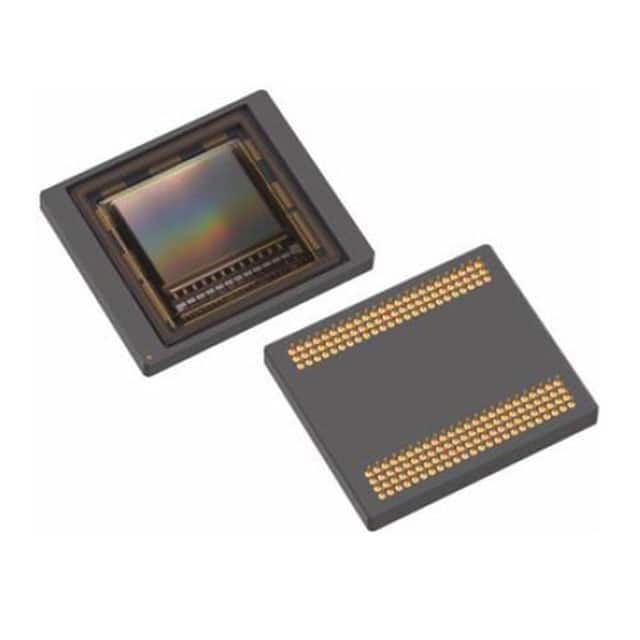

The ON Semiconductor LUPA1300-2 (NOIL2SM1300A-GDC) is an SXGA high-speed, high-sensitivity CMOS image sensor designed for demanding applications like machine vision and industrial monitoring. It features 1280 x 1024 active pixels with a pixel size of 14µm x 14µm, providing detailed image capture.
This sensor supports a high frame rate of 500 fps and offers both pipelined and triggered global shutter modes. It integrates on-chip 10-bit ADCs and 12 LVDS serial outputs for efficient data transfer. The operating voltage is nominal 2.5 V and 3.3 V, with a power dissipation of 1350 mW. The operational temperature range is -50°C to +85°C.
The sensor is housed in a 168-pin ceramic pin grid array (CPGA) package. It includes on-chip column FPN correction for improved image quality without offline processing. The device is Pb-Free and RoHS Compliant.
Applications include high-speed machine vision, motion analysis, medical imaging, intelligent traffic systems, and industrial imaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensor has 1280 x 1024 active pixels.
The sensor can achieve a frame rate of 500 fps.
The sensor requires nominal 2.5 V and 3.3 V power supplies.
The operational temperature range is -50°C to +85°C.
It is supplied in a 168-PGA or 168-CPGA package.
Yes, the device is RoHS3 Compliant.
