| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Pixel Array | |
| Active Pixels | |
| Frame Rate | |
| Frames per Second | |
| Operating Temperature | |
| Operating Voltage | |
| Pixel Size | |
| Power Dissipation | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

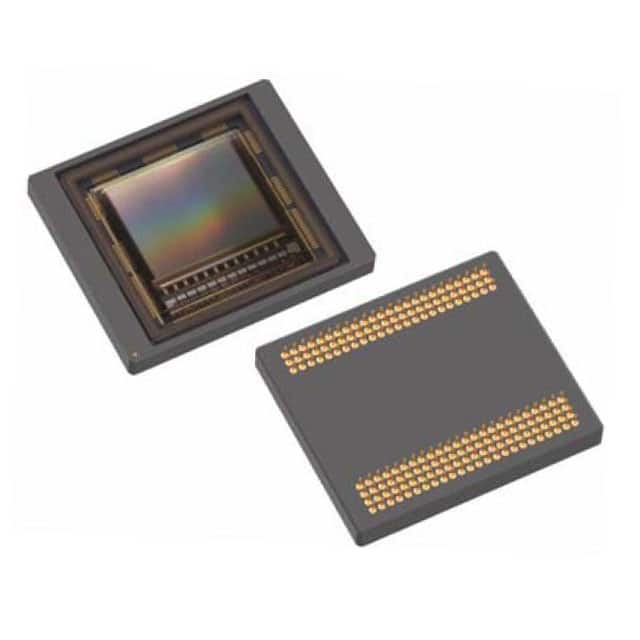

The ON Semiconductor LUPA1300-2 (NOIL2SC1300A-GDC) is an SXGA high-speed, high-sensitivity CMOS image sensor designed for demanding applications. It features 1280 x 1024 active pixels and supports a frame rate of up to 500 fps, making it suitable for high-speed machine vision and industrial monitoring.
This sensor operates with nominal 2.5 V and 3.3 V power supplies and has an operating temperature range of -50°C to +85°C. It includes on-chip 10-bit ADCs and 12 LVDS serial outputs for efficient data transfer. The sensor also features random programmable ROI readout and a pipelined and triggered global shutter.
The NOIL2SC1300A-GDC is housed in a 168-pin PGA package. It is designed for easy system integration with an LVDS interface. The device is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The sensor has 1280 x 1024 active pixels.
The sensor supports a frame rate of 500 fps.
The sensor operates on nominal 2.5 V and 3.3 V power supplies.
The operating temperature range is -50°C to +85°C.
The sensor is supplied in a 168-PGA package.
