| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ADC Resolution | |
| Color | |
| Frame Rate | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Optical Format | |
| Pixel Size | |
| Power Dissipation | |
| Resolution | |
| Shutter Type | |
| Storage Temperature | |
| Tape & Reel |

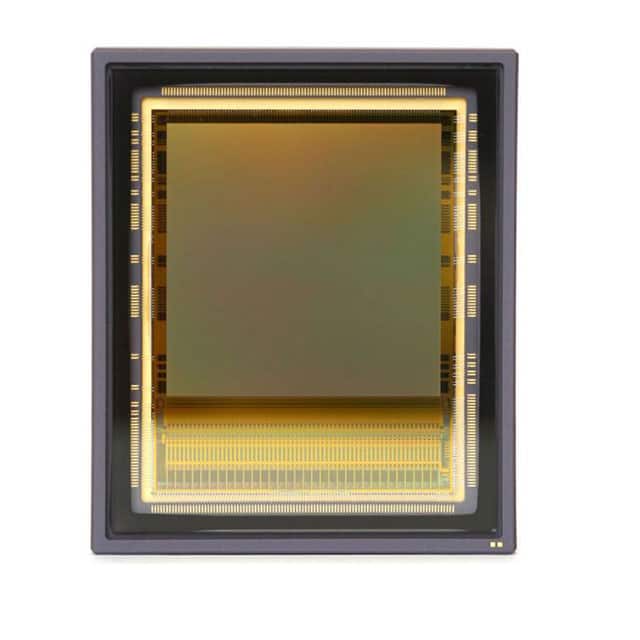

The On Semiconductor NOICPSN025KA-GTI is part of the PYTHON XK family of CMOS image sensors, offering high resolution and high bandwidth. This specific model provides a 25 megapixel resolution (5120 x 5120 active pixels) with a fast readout speed of up to 80 frames per second.
Key features include 4.5µm low noise global shutter pixels with in-pixel correlated double sampling (CDS), an APS-H optical format, and a 10-bit Analog-to-Digital Converter (ADC). Image data is accessed through 32 LVDS channels, each running at 720 Mbps, and a serial peripheral interface (SPI) is used for programming.
The sensor operates within a temperature range of -40°C to +85°C and has a power dissipation of 4.6W at full resolution. It is packaged in a 355-pin CPGA package and is available in monochrome configurations.
This image sensor is suitable for applications such as machine vision, motion monitoring, intelligent traffic systems, pick and place machines, inspection, and metrology.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NOICPSN025KA-GTI image sensor has a resolution of 5120 x 5120 pixels.
The pixel size for the NOICPSN025KA-GTI is 4.5 µm.
The NOICPSN025KA-GTI utilizes a Global Shutter.
The maximum frame rate for the NOICPSN025KA-GTI is 80 frames per second.
The operating temperature range for the NOICPSN025KA-GTI is -40°C to +85°C.
The NOICPSN025KA-GTI is supplied in a 355-pin CPGA package.
