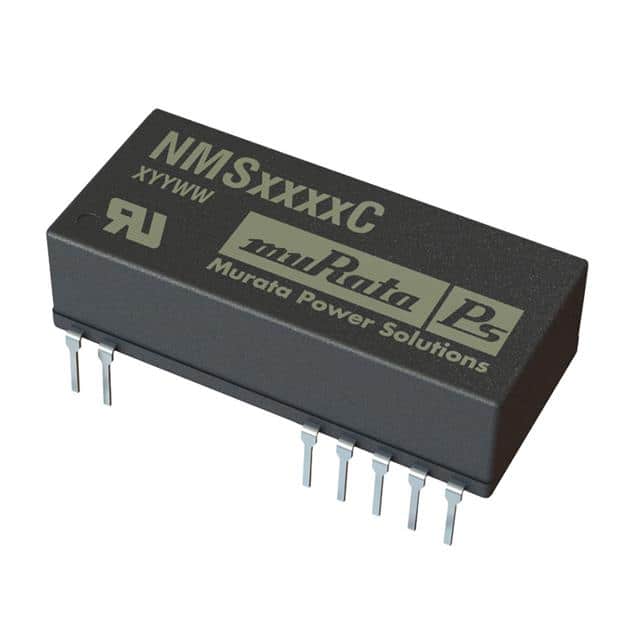

NMS0505C The Murata NMS0505C is a 2W isolated DC DC converter with dual +/-5V outputs. It features a 4.5V to 5.5V input range and 200mA current capability per output.
Mfr Part #:

NMS0505C

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata NMS0505C is a 2W isolated DC DC converter with dual +/-5V outputs. It features a 4.5V to 5.5V input range and 200mA current capability per output.
✓ Total Stock: 100 pcs
$ Price Range: $0.99

NMS0505C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

NMS0505C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Failure Rate
Height
Input Voltage
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

NMS0505C Description

Short technical summary and product information.

The Murata NMS0505C is an isolated DC DC converter designed for ITE (Commercial) applications. It provides dual outputs of +5V and -5V, each capable of delivering up to 200mA, for a total power output of 2W.



This converter operates within an input voltage range of 4.5V to 5.5V and offers a high isolation voltage of 6kV. Its efficiency is rated at 74% and it is designed for operation in temperatures from 0°C to 70°C.



The NMS0505C is housed in a 24-DIP Module (600 mil, 14 Leads) package and is designed for Through Hole mounting. Its dimensions are 32.5mm in length, 14.7mm in width, and 9.4mm in height.

NMS0505C Quick Information

Product Type: DC DC Converter
Series: NMS (2W)
Canonical Name: Murata NMS0505C DC DC Converter
Subcategory: Isolated Module

NMS0505C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NMS0505C Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

NMS0505C Features

  • Isolated DC DC converter with dual +/-5V outputs.
  • 2W total power output capability.
  • 200mA current per output channel.
  • Wide 4.5V to 5.5V input voltage range.
  • 6kV isolation voltage for enhanced safety.

NMS0505C Applications

  • Suitable for ITE commercial applications.
  • Provides isolated power rails.
  • Used in systems requiring +/- voltage.
  • Board mountable via Through Hole.

NMS0505C FAQs

7 frequently asked questions generated from this part’s specifications.
What are the output voltages of the NMS0505C DC DC converter?

The NMS0505C provides dual outputs of +5V and -5V.

What is the maximum output current for each output on the NMS0505C?

Each output channel can deliver a maximum current of 200mA.

What is the input voltage range for the NMS0505C?

The input voltage range for this converter is 4.5V to 5.5V.

What is the power rating of the NMS0505C DC DC converter?

The NMS0505C has a power rating of 2W.

What is the isolation voltage of the NMS0505C?

The isolation voltage is 6kV.

What is the operating temperature range for the NMS0505C?

The operating temperature range is 0°C to 70°C.

How is the NMS0505C mounted on a PCB?

The NMS0505C is mounted using the Through Hole method.
