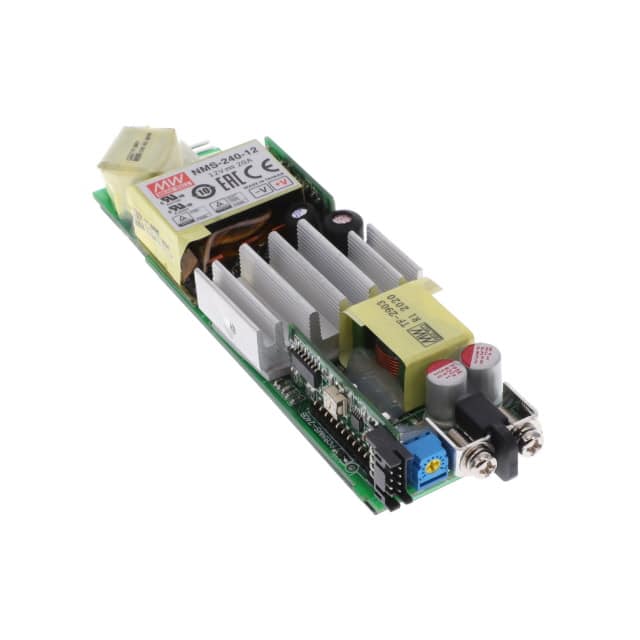

NMS-240-12 The NMS-240-12 is a DC Output Module from Mean Well USA, delivering 240W at 12V with a 20A current rating. It features remote on/off and user adjustable output.
Mfr Part #:

NMS-240-12

Mfr Name: Mean Well USA
Mean Well USA
The NMS-240-12 is a DC Output Module from Mean Well USA, delivering 240W at 12V with a 20A current rating. It features remote on/off and user adjustable output.
Stock on Request

NMS-240-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Number of Outputs
Power (Watts)
SVHC Present
Standard Number
Type
Voltage
View Similar Products (0)

NMS-240-12 Description

Short technical summary and product information.

The NMS-240-12 is a single DC output module from Mean Well USA, part of their configurable power supply series. It provides a nominal 12V output with an adjustable range of 6.0 to 15.0V, capable of delivering up to 20A and 240W of power. The module includes remote on/off control and user adjustable output voltage, making it suitable for applications requiring flexible power management. It complies with safety standards 60601-1 (medical) and 62368-1 (ITE/audio/video). This module is designed for use in AC DC configurable power supply systems, offering a compact and reliable solution for various industrial and medical equipment.

NMS-240-12 Quick Information

Product Type: AC DC Configurable Power Supply Module
Series: NMS-240
Canonical Name: Mean Well USA NMS-240-12 DC Output Module, 12V, 240W
Subcategory: Single Output

NMS-240-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

NMS-240-12 Features

  • Single DC output rated at 240W.
  • Output voltage adjustable from 6.0 to 15.0V.
  • Provides up to 20A output current.
  • Features remote on/off control.
  • Compliant with medical and ITE safety standards.

NMS-240-12 Applications

  • Used in medical equipment power systems.
  • Suitable for industrial control applications.
  • Ideal for configurable power supply designs.
  • Supports remote power management.

NMS-240-12 FAQs

1 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the NMS-240-12?

The output voltage is 12V nominal with an adjustable range of 6.0 to 15.0V.
