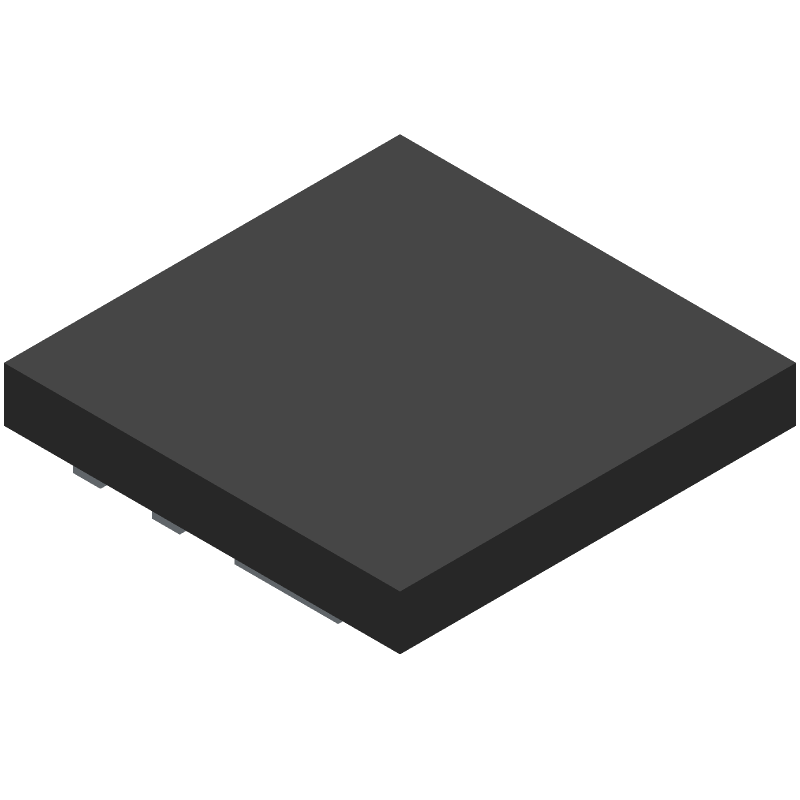

The NMLU1210TWG is a full bridge rectifier from ON Semiconductor, integrating dual N-channel MOSFETs and a Schottky barrier diode in a single package. It is designed for low power AC-DC rectification and wireless charging applications.
The device is rated for a maximum input voltage of 20V between the two MOSFET drains. It can handle continuous drain current of 2.2A under steady state conditions and up to 3.2A for transient periods less than 5 seconds. The typical forward voltage of the Schottky diode is 0.45V, and the MOSFETs feature low on-resistance of 17mΩ typical at VGS=10V and 23mΩ at VGS=4.5V.
Power dissipation is rated at 1.2W steady state and 2.34W for short durations. Thermal resistance from junction to ambient is 82.5°C/W with a 1 in sq pad and 209°C/W with minimum pad. The device operates over a junction temperature range of -55°C to 125°C. It is housed in a compact 8-UDFN exposed pad package (UDFN CASE 517BS) for surface mount assembly.
The NMLU1210TWG is Pb-free and halogen-free, making it suitable for environmentally conscious designs. Typical applications include wireless charging receivers, AC-DC rectification in portable devices, and power management for cell phones, PMPs, DSC, and GPS units.
The maximum input voltage between the two MOSFET drains is 20V.
The continuous drain current is 2.2A steady state and up to 3.2A for transient periods less than 5 seconds.
The typical forward voltage is 0.45V.
It is available in an 8-UDFN exposed pad package (UDFN CASE 517BS).
The junction temperature range is -55°C to 125°C.
Typical RDS(on) is 17mΩ at VGS=10V and 23mΩ at VGS=4.5V.
Yes, the datasheet states it is Pb-free and uses halogen-free molding compound.
