| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,898 pcs
|
6898 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Input Current | |
| Input Voltage (Nominal) | |
| Isolation Capacitance | |
| Length | |
| MTTF | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| UL | |
| Voltage | |
| Width | |
| load_regulation (Typical/Maximum @ full load) | |
| ripple_and_noise (Typical/Maximum) |

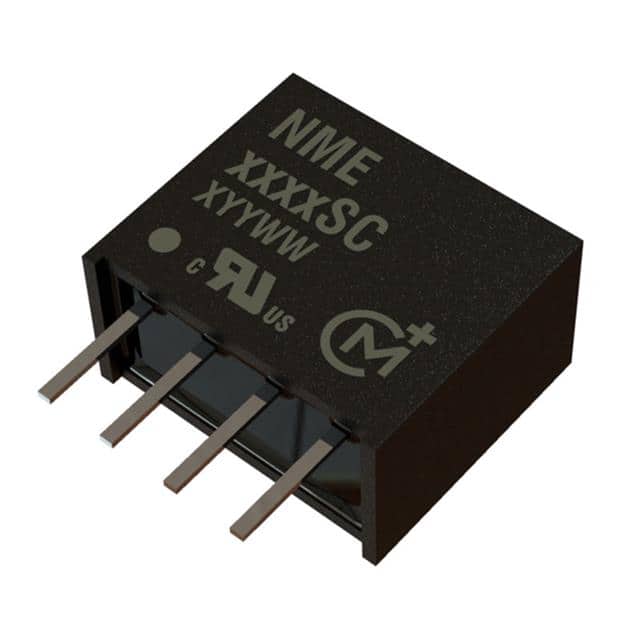

The NME1205SC is an isolated DC-DC converter from Murata Power Solutions' NME series. It provides a single regulated 5V output at 200mA from a nominal 12V input, delivering 1W of output power.
Key electrical specifications include a typical efficiency of 69% (minimum 33%), load regulation of 8% typical (10% maximum), and ripple and noise of 12mV typical (30mV maximum). The converter offers 33pF isolation capacitance and a mean time to failure (MTTF) of 2493 kHrs.
The device is designed for commercial ITE (Information Technology Equipment) applications. It operates over a temperature range of -40°C to 85°C. The NME1205SC is housed in a 4-SIP (Single In-line Package) module with through-hole mounting, measuring 11.4mm x 6.1mm x 9.9mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.30 | $8.30 |
| 5+ | $8.15 | $8.15 |
| 25+ | $7.88 | $7.88 |
| 35+ | $7.74 | $7.74 |
| 105+ | $7.64 | $7.64 |
| 280+ | $7.40 | $7.40 |
| 525+ | $7.38 | $7.38 |
| 1,015+ | $7.37 | $7.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 V
5 V at 200 mA
4-SIP Module
-40°C to 85°C
Yes, RoHS3 compliant (unverified)
69%
33 pF
