| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Approval Agency | |
| Body Material | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Diameter | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Insertion Loss | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Style | |
| Weight |

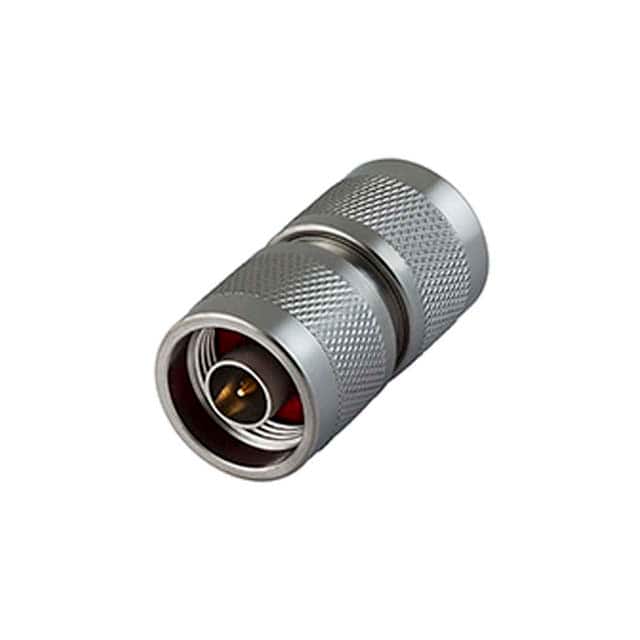

The Mini-Circuits NM-NM50-18+ is a coaxial N-Male to N-Male adapter designed for wideband applications from DC to 18 GHz. It provides a 50 Ohm impedance with low insertion loss of 0.11 dB typical and excellent VSWR of 1.04:1 typical across the full band, ensuring minimal signal reflection. The adapter is constructed with passivated stainless steel for durability and measures 0.72 inches in length by 0.80 inches in diameter. It supports an operating temperature range of -55°C to +100°C and is suitable for interconnecting RF cables and equipment in test setups and system integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $27.20 | $27.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NM-NM50-18+ operates from DC to 18 GHz.
It is a 50 Ohm coaxial adapter.
Typical insertion loss is 0.11 dB from DC to 18 GHz.
VSWR is 1.03:1 typ up to 6 GHz and 1.04:1 typ from 6 to 18 GHz.
The adapter is constructed from passivated stainless steel.
Operating temperature range is -55°C to +100°C.
